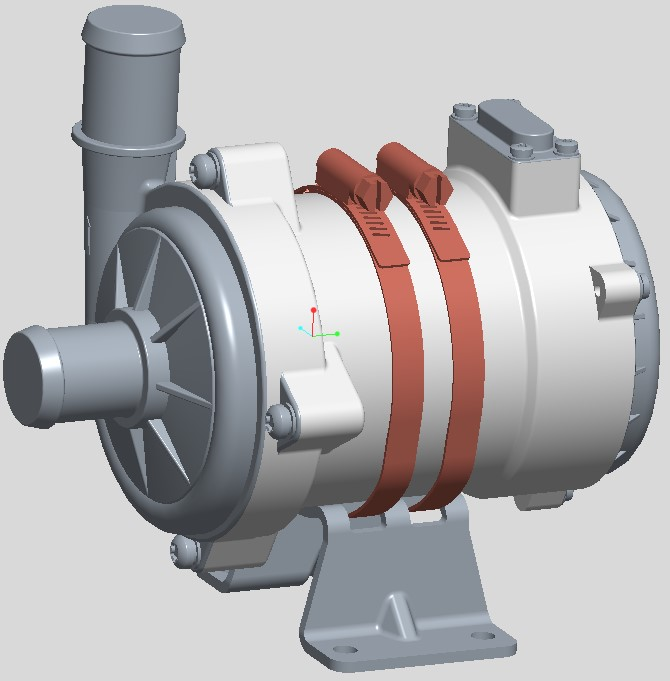

600W New Energy Vehicle Circulation Coolant Pump
Product Description
This electronic water pump is a speed-adjustable pump with a brushless DC motor driving the impeller. The brushless motor is driven by a controller.
This electronic circulation pump can be used in automotive engine main cooling systems, auxiliary cooling systems, battery pack cooling systems, and energy storage devices. It provides energy for coolant flow to various heat dissipation points, maximizing the effectiveness of various thermal control systems and ensuring their stable operation.
The electronic coolant pump can be speed-controlled via CAN bus, thereby adjusting the pump's operating status. In addition to its basic functions, the pump also has corresponding protection functions.

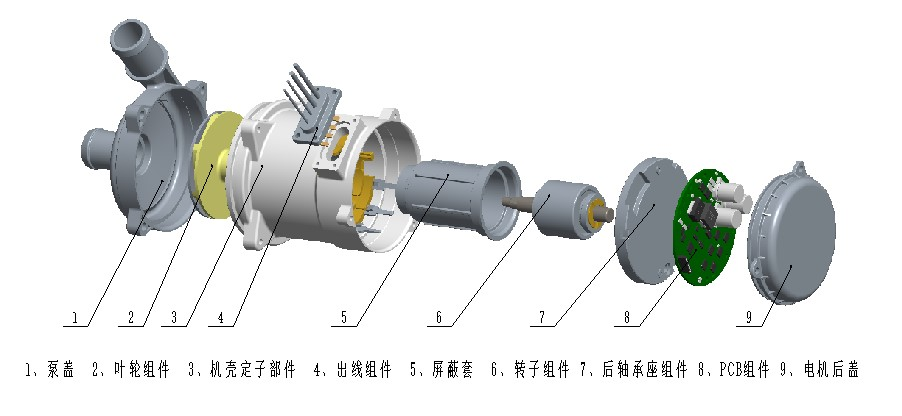

Structural Composition
This series of electronic water pumps is a brushless motor-driven canned pump. The main components are as follows:
A DC brushless motor including a rotor assembly (including an impeller assembly) and a stator housing (including a shielding sleeve and rear bearing housing assembly);
A controller (PCB assembly) for communicating with the main control unit and controlling the DC brushless motor;
A pump cover for connection to the vehicle, engine, and cooling system;
A brushless motor rear cover including a wiring assembly for connecting to the vehicle.
Product Parameter
| Product name | Electronic water pump |
| Model | 02.03.732.3405 |
| Rated voltage | 24VDC |
|
Voltage range |
DC18V～32V |
|
Rated current |
≤25.5A |
| Protection level | IP67 |
| Storage temperature | -40~100℃ |
| working environment temperature | -40~100℃ |
| Power | 600W |
| Rated flow | ≥3500L/h@24m |

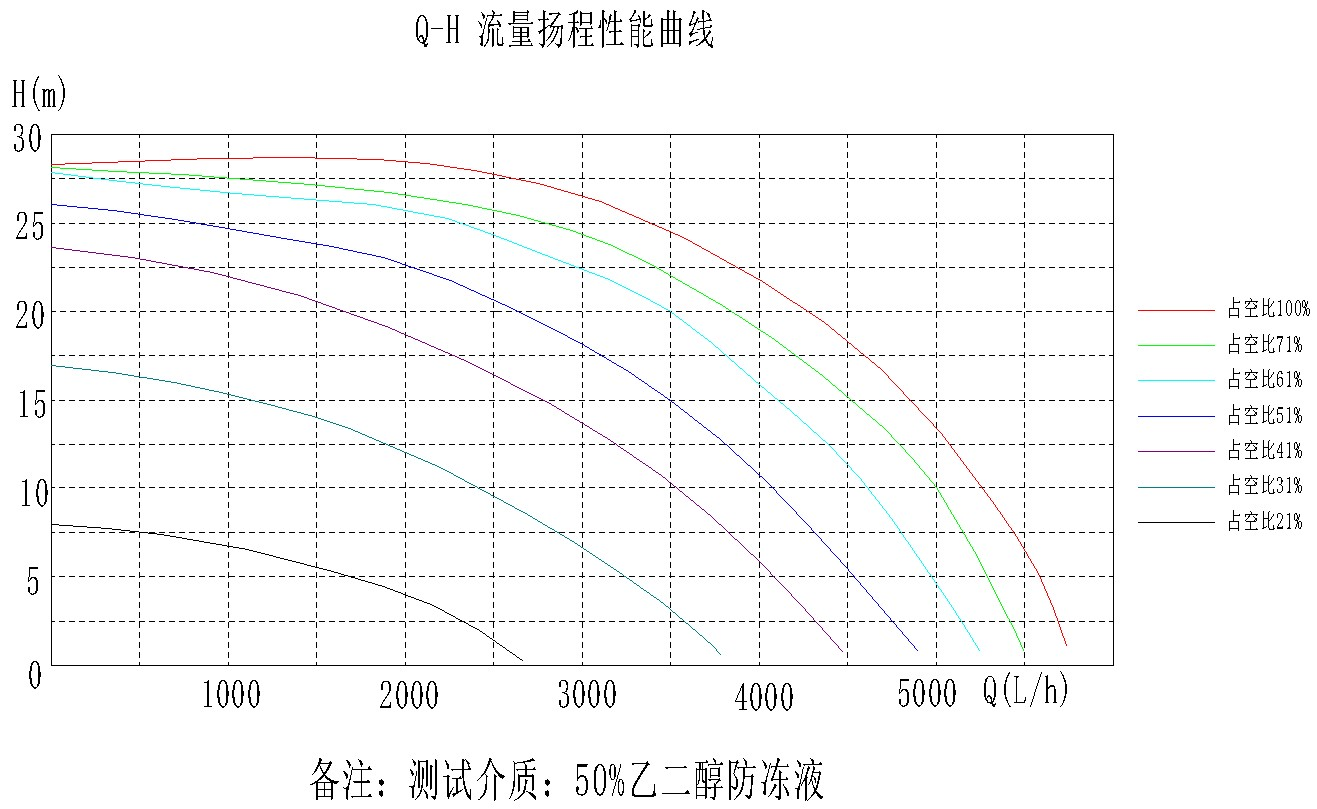

Performance Curve
