Battery Thermal Management System (BTMS) for electric buses, electric trucks good quality
Description
Liquid cooled unit (BTMS) is a temperature management solution designed specifically for battery systems, with the core function of optimizing battery performance, extending lifespan, and ensuring safety. Liquid cooled units have become a key guarantee for high-energy density battery systems through efficient and precise temperature control, promoting the improvement of electric vehicle range and the safety upgrade of energy storage systems. They are essential support for battery technology to move towards higher performance.
Core Functions of BTMS
Temperature Control
Cooling: Batteries generate a large amount of heat during high-rate charging or high-power discharging (e.g., electric vehicle acceleration). BTMS removes excess heat to prevent overheating, which can cause thermal runaway, fire, or explosion.
Heating: In low-temperature environments (e.g., winter below 0°C), battery electrochemical reaction efficiency drops sharply, leading to reduced charge acceptance and discharge capacity. BTMS heats the battery to reach the optimal working temperature (usually 20–40°C for lithium-ion batteries).
Temperature Uniformity: Eliminates temperature differences between individual cells in the battery pack. A large temperature gradient will cause inconsistent aging rates of cells, reducing the overall service life of the pack.
Temperature MonitoringEquipped with temperature sensors (e.g., thermistors, thermocouples) distributed inside the battery pack, it real-time monitors the temperature of key positions (cells, modules, cooling channels) and feeds data back to the battery management system (BMS) for dynamic adjustment of control strategies.
Fault Early WarningWhen abnormal temperature rise (e.g., rapid local overheating) is detected, it triggers early warning signals and cooperates with BMS to take protective measures (e.g., reducing charging/discharging power, cutting off the circuit).

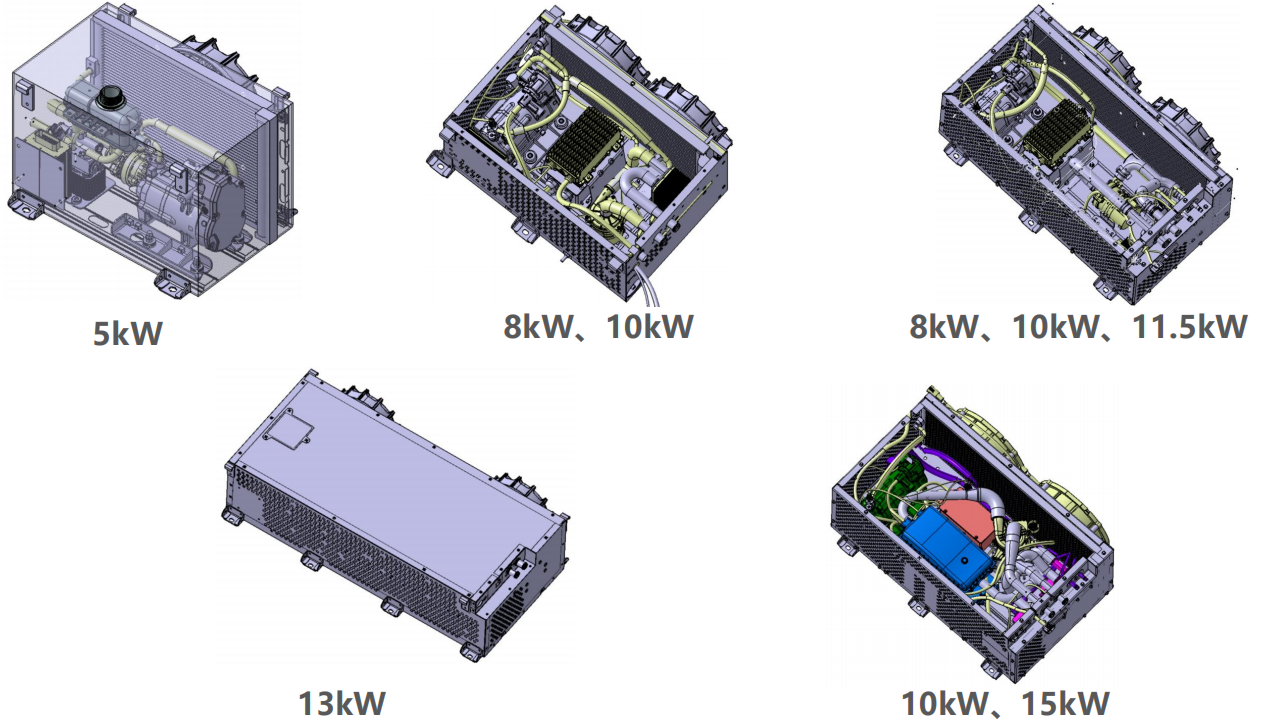

Technical Parameter
| No. |
Platform |
Cooling Power |
WPTC |
DCDC |
Pre charging module |
Size |
| HeatingPower kW | ||||||
| 1 |
5kW |
≥5.0KW |
5、 8、 10、 12、 16、 18、 24 | 1.0kW Option | 10/15kW Option | 520*390*341 |
| 2 |
8kW |
≥8.0KW |
653*520*290 | |||
| 3 |
8/10kW |
≥10.0KW |
833*512*290 | |||
| 4 |
10kW |
≥10.0KW |
653*520*290 | |||
| 5 |
11.5kW |
≥11.5KW |
833*512*290 | |||
| 6 |
10kW |
≥10.0KW |
8、 12、 16、 18、 24 | 3.0kW Option | 900*570*341 | |
| 7 |
13kW |
≥13.0KW |
1150*590*290 | |||
| 8 |
15kW |
≥15.0KW |
900*570*341 |
Package And Delivery
Why Choose Us
Hebei Nanfeng Automobile Equipment (Group) Co., Ltd. was founded in 1993 and has grown into a corporate group with 6 factories and 1 international trading subsidiary. As a leading manufacturer of vehicle heating and cooling systems in China, we are also a designated supplier for Chinese military vehicles. Our main products include Battery Thermal Management Systems (BTMS), high-voltage coolant heaters, electronic water pumps, plate heat exchangers, parking heaters, and parking air conditioning systems.
Our factory's production units are equipped with high tech machineries,strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
Our company attained the ISO/TS 16949:2002 quality management system certification in 2006, a key milestone in our commitment to excellence. Further affirming our international compliance, we have also secured the CE and E-mark certifications, distinctions held by only a select number of manufacturers worldwide. As the market leader in China with a 40% domestic market share, we supply products across the globe, with a strong presence in Asia, Europe, and the Americas.
Meeting the exacting standards and evolving demands of our customers is our core mission. This commitment drives our team of experts to continually innovate, design, and manufacture high-quality products that are ideally suited for both the Chinese market and our diverse international clientele.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit.
A lot of customer feedback says it works well.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
