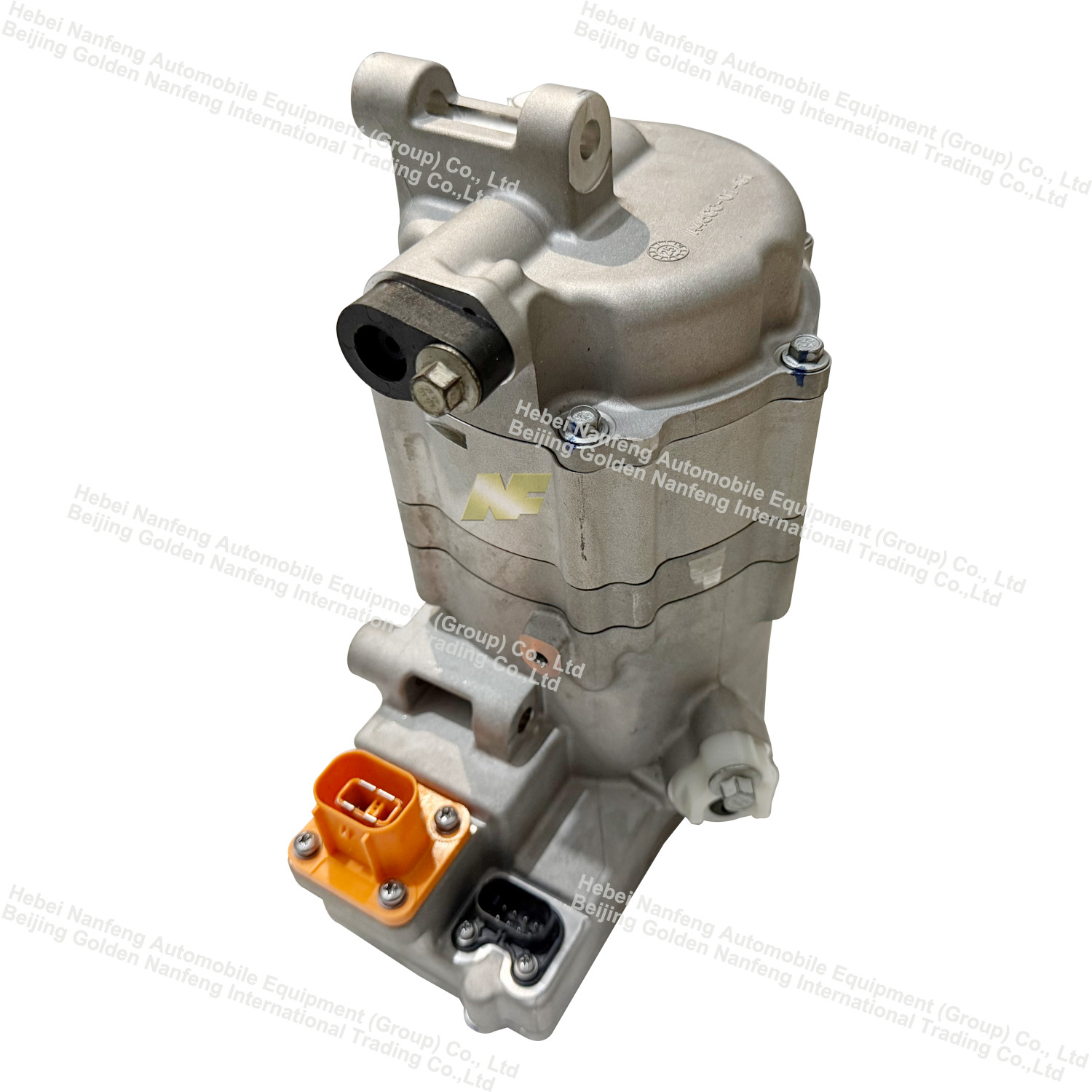

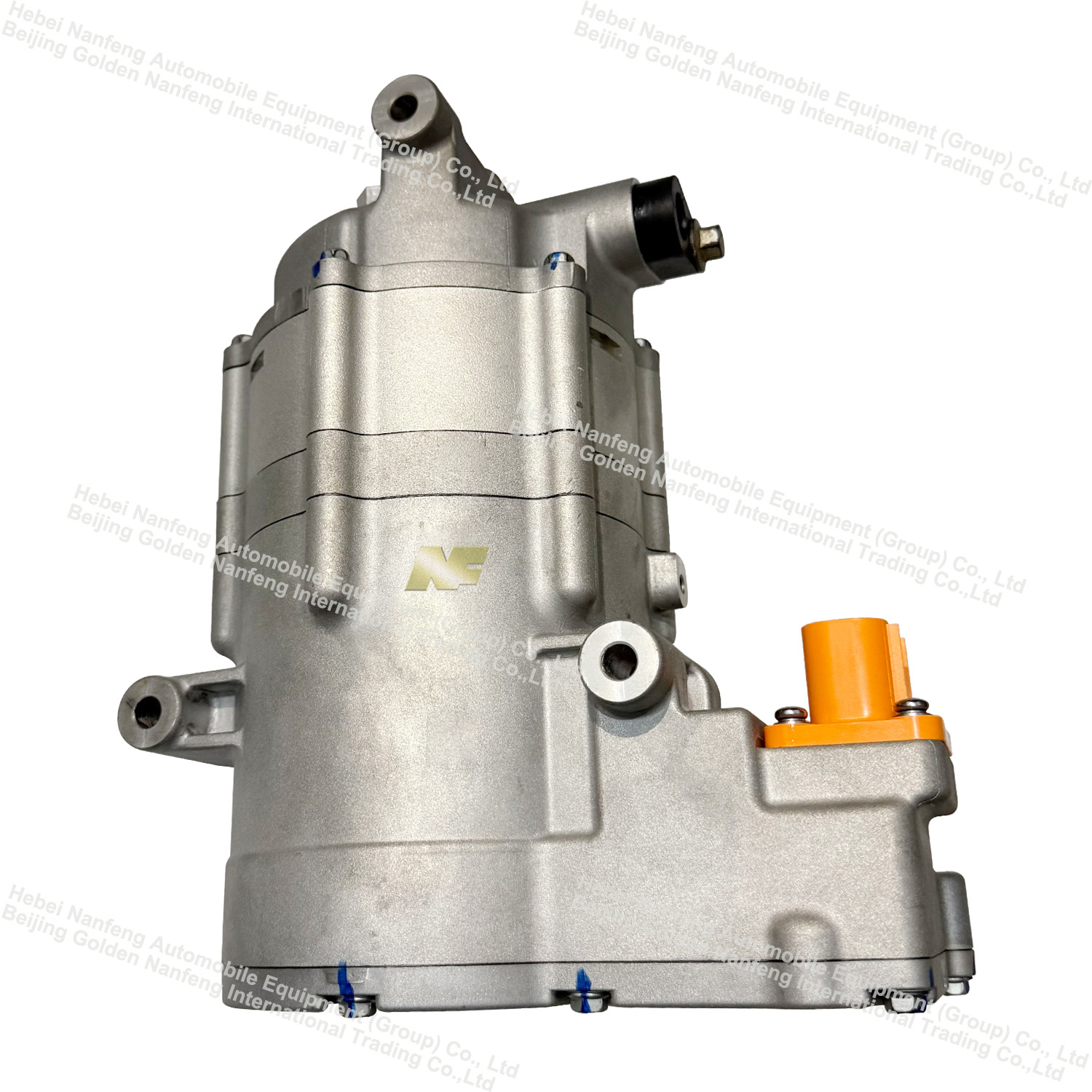

Electric Scroll Vehicle Air Conditioning Compressor

Short Description:

Electric air conditioning compressor: the “core of vehicle cooling” in new energy vehicles.

Send email to us

Product Detail

Product Tags

Product Description

The electric air conditioning compressor is an electric-driven cooling unit designed specifically for pure electric/hybrid vehicles. It replaces the oil-lubricated compressor driven by the engine in traditional fuel vehicles. It directly compresses the refrigerant through the electric motor to provide cooling for the cabin and battery system. It is a core component of the thermal management system of new energy vehicles.

Product Parameter

Specification	DM18	DM24
Displacement	18cc	24cc
Controller/Motor	One-piece	One-piece
Range of rotation	2000rpm~6000rpm	2000rpm~6000rpm
Maximum coolingcapacity/working current	2900W(6000rpm)/83A	4000W(6000rpm)/62A
Input current	120A	90A
Voltage	DC10V~DC420V	DC20V~DC32V
Energy efficiency Ratio COP(W/W)	2.0@Pd/Ps=1.5/0.3MPaA SH/SC=10/5℃	2.0@Pd/Ps=1.5/0.3MPaA SH/SC=10/5℃
Waterproof and Dustproof requirements	IP67
Continuous working temperature	-20℃~+85℃
Save ambient temperature	-40℃~+120℃
Refrigerant	R134a/R1234yf
Refrigeration oil /injection volume	PVE68/100cc	PVE68/100cc
Weight	5.5kg(Contains refrigeration oil）	5.5kg(Contains refrigeration oil）
