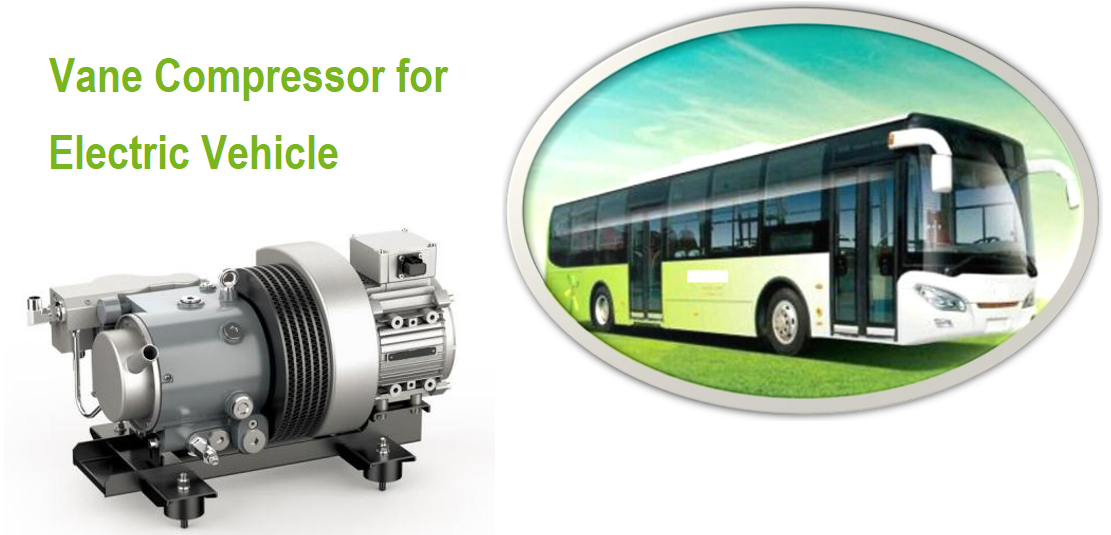

Electric vehicle (EV) vane compressors for electric buses, trucks
Description
Core Structure & Working Principle
Structure: It is composed of an eccentric rotor, 3-6 sliding vanes, a cylindrical cylinder, front and rear end covers, an integrated high - voltage motor, and an inverter controller. The vanes are pressed against the cylinder wall by centrifugal force or springs to form variable - volume sealed chambers.
Working Cycle:
- Suction: When the rotor rotates, the chamber volume increases, and air/refrigerant is drawn in.
2. Compression: As the rotor continues to rotate, the chamber volume decreases, and the pressure rises.
3. Discharge: When the pressure meets the requirement, the gas is discharged, and continuous output is achieved through continuous rotation.
Key Advantages for EVs
Advantage：
Compact & Light weight Small size, suitable for the limited layout space of EV chassis, and helps reduce the overall vehicle weight.
Low Vibration & Noise Rotational operation, low vibration, and noise as low as 62-68 dB(A), which improves the ride comfort inside the car.
High Volumetric Efficiency Excellent performance in medium - and low - pressure (8-12 bar) scenarios, and the efficiency is stable within a wide speed range.
Easy to Integrate It can be integrated with a motor, inverter, and liquid cooling system, and is compatible with 400V/800V high - voltage platforms.
Flexible Speed Regulation The speed can be adjusted from hundreds to thousands of rpm, which matches the variable load requirements of thermal management and air supply systems.

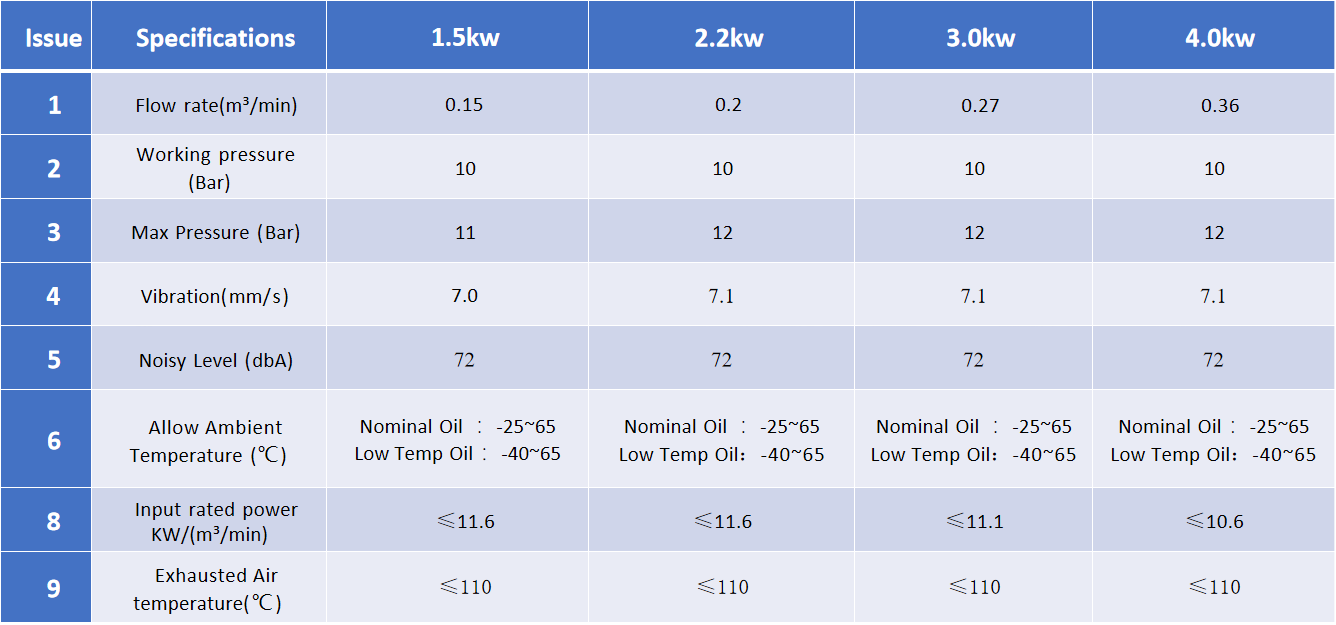

Technical Parameter
Main Technical Specifications:
| Name&Model | Air displacement
(m3/min) |
Exhaustpressure
(Mpa) |
MotorPower
(kW) |
Oil Content
(mg/m³) |
MaximumTemperature(°C) | Vent size |
Weight (kg) |
| AZH4.0/AZR4.0 | 0.38 | 1.2 | 4.0 | ≤2 | 110 | M22×1.5（内） | 50 |
| AZH3.0/AZR3.0 | 0.28 | 1.2 | 3.0 | ≤2 | 110 | M22×1.5（内） | 50 |
| AZH2.2/AZR2.2 | 0.20 | 1.2 | 2.2 | ≤2 | 110 | M22×1.5（内） | 50 |
Package And Delivery
Why Choose Us
Hebei Nanfeng Automobile Equipment (Group) Co., Ltd. was founded in 1993 and has grown into a corporate group with 6 factories and 1 international trading subsidiary. As a leading manufacturer of vehicle heating and cooling systems in China, we are also a designated supplier for Chinese military vehicles. Our main products include Battery Thermal Management Systems (BTMS), high-voltage coolant heaters, electronic water pumps, plate heat exchangers, parking heaters, and parking air conditioning systems.
Our factory's production units are equipped with high tech machineries,strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
Our company attained the ISO/TS 16949:2002 quality management system certification in 2006, a key milestone in our commitment to excellence. Further affirming our international compliance, we have also secured the CE and E-mark certifications, distinctions held by only a select number of manufacturers worldwide. As the market leader in China with a 40% domestic market share, we supply products across the globe, with a strong presence in Asia, Europe, and the Americas.
Meeting the exacting standards and evolving demands of our customers is our core mission. This commitment drives our team of experts to continually innovate, design, and manufacture high-quality products that are ideally suited for both the Chinese market and our diverse international clientele.
