Electronic Coolant Pump EV DC 12V Circulation Pump
Description
Introducing our advanced electronic coolant pump, designed to revolutionize the way you manage temperature control in a variety of applications. Designed with precision and efficiency at its core, this innovative pump is ideal for automotive, industrial, and HVAC systems, ensuring optimal performance and reliability.
Our electronic coolant pumps use advanced technology to provide superior cooling performance. Their compact design and lightweight construction allow them to be easily integrated into existing systems without major modifications. The pumps operate quietly and efficiently, reducing energy consumption while maintaining high flow rates, making them an environmentally friendly choice for your cooling needs.
A highlight of our electronic circulation pumps is their intelligent control system. This system monitors and adjusts coolant flow in real time, ensuring your equipment operates within the ideal temperature range. Whether you are cooling engines, production processes or refrigeration equipment, our pumps can adapt to different needs and provide consistent performance in all conditions.
Durability is a top priority in our designs. Made from premium materials, our EV coolant pumps resist corrosion and wear, ensuring long service life even in the harshest environments. Their rugged construction means less downtime and maintenance costs, allowing you to focus on what matters most – keeping your operation running smoothly.
In addition to the technical advantages, our electronic coolant pumps come with excellent customer support and a comprehensive warranty, giving you peace of mind when investing. Upgrade your cooling system with our electronic coolant pumps today and experience the perfect combination of efficiency, reliability and innovation. Whether for personal or professional use, this pump is the ultimate solution for all your coolant management needs.
In 2006, our company has passed ISO/TS 16949:2002 quality management system certification. We also bagged the CE certificate and E-mark certificate making us among the only few companies in the world acquiring such high-level certifications.Currently being the largest stakeholders in China,we hold a domestic market share of 40% and then we export them around the globe particularly in Asia,Europe and Americas.
Meeting the standards and demands of our customers have always been our top priority.It always encourages our experts to continuously brain storm,innovate,design and manufacture new products,impeccably suitable for the Chinese market and our customers from every nook of the world.
For more information, you are welcome to contact us directly.
Technical Parameter
| OE NO. | NFHS-030-221 |
| Product Name | Electronic Water Pump |
| Application | pure electric vehicles |
| Rated power | 120W |
| Rated Voltage | DC12V |
| Voltage Range | DC9V~DC18V |
| Working Temperature | -40℃~100℃ |
| Usage medium | Water to ethylene glycol ratio = 50:50 |
| Inlet and Outlet Water Joint Dimension | Ø20mm |
Product Size
Function Description
| 1 | Locked rotor protection | When impurities enter the pipeline, the pump is blocked, the pump current suddenly increases, and the pump stops rotating. | |||
| 2 | Dry running protection | The water pump stops running at a low speed for 15min without circulating medium, and can be restarted to prevent the damage of the water pump caused by serious wear of parts. | |||
| 3 | Reverse connection of power supply | When the power polarity is reversed, the motor is self protected and the water pump does not start; The water pump can operate normally after the power polarity returns to normal | |||

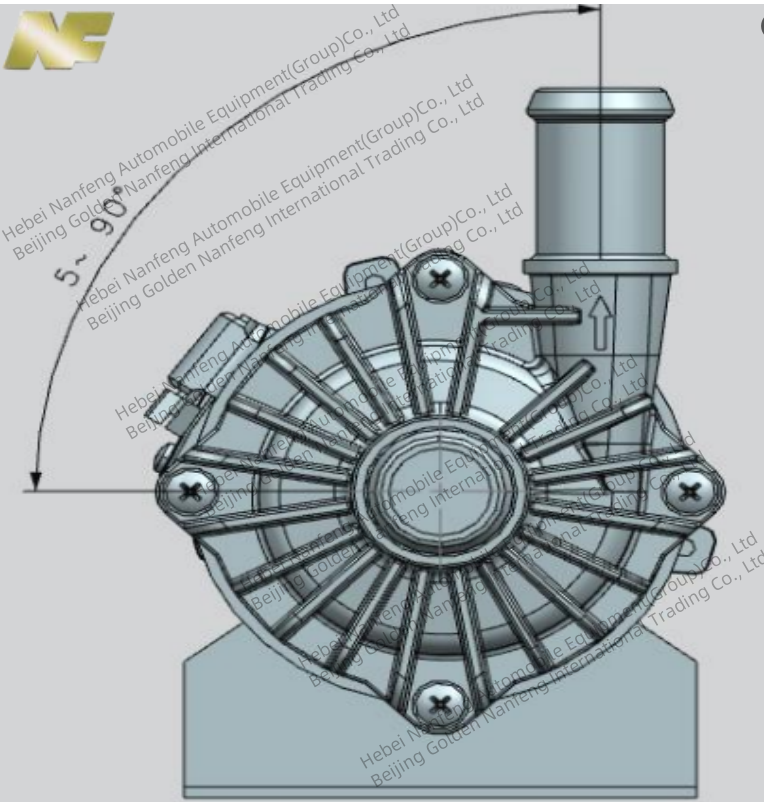

| Recommended installation method | |||||
The installation angle is recommended, Other angles affect the discharge of water pump. |
|||||
| Faults and solutions | |||||
| Fault phenomenon | reason | solutions | |||
| 1 | Water pump doesn’t work | 1. The rotor is stuck due to foreign matters | Remove the foreign matters that cause the rotor to be stuck. | ||
| 2. The control board is damaged | Replace the water pump. | ||||
| 3. The power cord is not connected properly | Check whether the connector is well connected. | ||||
| 2 | Loud noise | 1. Impurities in the pump | Remove impurities. | ||
| 2. There is gas in the pump that cannot be discharged | Place the water outlet upward to ensure that there is no air in the liquid source. | ||||
| 3. There is no liquid in the pump, and the pump is dry ground. | Keep liquid in the pump | ||||
| Water pump repair and maintenance | |||||
| 1 | Check whether the connection between the water pump and the pipeline is tight. If it is loose, use the clamp wrench to tighten the clamp | ||||
| 2 | Check whether the screws at the flange plate of the pump body and the motor are fastened. If they are loose, fasten them with a cross screwdriver | ||||
| 3 | Check the fixation of the water pump and the vehicle body. If it is loose, tighten it with a wrench. | ||||
| 4 | Check the terminals in the connector for good contact | ||||
| 5 | Clean the dust and dirt on the external surface of the water pump regularly to ensure normal heat dissipation of the body. | ||||
| Precautions | |||||
| 1 | The water pump must be installed horizontally along the axis. The installation location should be as far away from the high temperature area as possible. It should be installed at a location with low temperature or good air flow. It should be as close to the radiator tank as possible to reduce the water inlet resistance of the water pump. The installation height should be more than 500mm from the ground and about 1/4 of the water tank height below the total height of the water tank. | ||||
| 2 | The water pump is not allowed to run continuously when the outlet valve is closed, causing the medium to vaporize inside the pump. When stopping the water pump, it should be noted that the inlet valve must not be closed before stopping the pump, which will cause sudden liquid cut-off in the pump. | ||||
| 3 | It is forbidden to use the pump for a long time without liquid. No liquid lubrication will cause the parts in the pump to be lack of lubricating medium, which will aggravate the wear and reduce the service life of the pump. | ||||
| 4 | The cooling pipeline shall be arranged with as few elbows as possible (elbows less than 90 ° are strictly prohibited at the water outlet) to reduce pipeline resistance and ensure smooth pipeline. | ||||
| 5 | When the water pump is used for the first time and used again after maintenance, it must be fully vented to make the water pump and suction pipe full of cooling liquid. | ||||
| 6 | It is strictly prohibited to use liquid with impurities and magnetic conductive particles larger than 0.35mm, otherwise the water pump will be stuck, worn and damaged. | ||||
| 7 | When using in low temperature environment, please ensure that the antifreeze will not freeze or become very viscous. | ||||
| 8 | If there is water stain on the connector pin, please clean the water stain before use. | ||||
| 9 | If it is not used for a long time, cover it with a dust cover to prevent dust from entering the water inlet and outlet. | ||||
| 10 | Please confirm that the connection is correct before powering on, otherwise faults may occur. | ||||
| 11 | The cooling medium shall meet the requirements of national standards. | ||||
Advantage
*Brushless motor with long service life
*Low power consumption and high efficiency
*No water leakage in magnetic drive
*Easy to install
*Protection grade IP67
Application
It is mainly used for cooling the motors, controllers and other electrical appliances of new energy vehicles (hybrid electric vehicles and pure electric vehicles).
Package And Delivery
Why Choose Us
Hebei Nanfeng Automobile Equipment (Group)Co.,Ltd was established in 1993,which is a group company with 6 factories and 1 international trading company.We are the biggest vehicle heating & cooling system manufacturer in China and the designated supplier of Chinese military vehicles.Our main products are high voltage coolant heater,electronic water pump,plate heat exchanger,parking heater,parking air conditioner,etc.

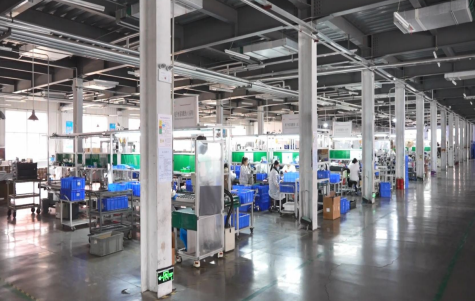

Our factory's production units are equipped with high tech machineries,strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
