EV Battery thermal management system(BTMS)

Short Description:

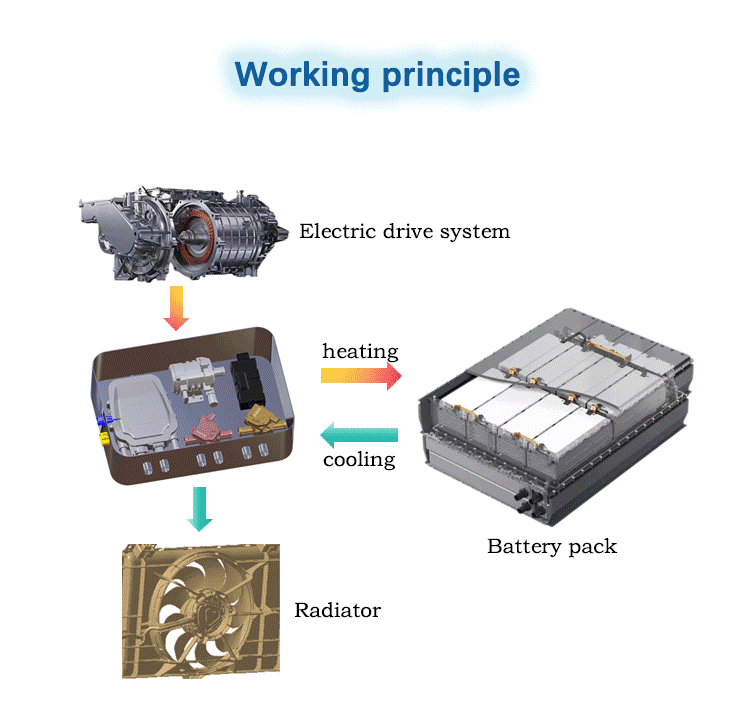

The main task of the battery thermal management system is to control the temperature of the power battery and ensure that it operates in the optimal working range, thereby improving battery performance, extending service life, and preventing safety hazards such as thermal runaway.

Send email to us

Product Detail

Product Tags

Product Description

The electric vehicle battery cooling unit covers a cooling capacity of 8-15KW and a heating capacity of 10-24KW, providing battery cooling/heating for commercial vehicles (new energy heavy-duty trucks, new energy buses, new energy construction machinery), energy storage stations, battery swap stations, and other large-capacity battery applications.
Features:

1.Full-range temperature control

Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature for extended cycle life and improved energy efficiency.

2.Premium Product Emphasis

Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency. Features remote intelligent monitoring/diagnostics and OTA upgrade capability.

Product Parameter

Product name	Battery thermal management unit
Model NO	HVH-8LD1-00
Low-voltage Power Supply Operating Range	18~32V
High-voltage Power Supply Operating Range	≤750V
Body Material	Aluminium
Cold Style	Water-cooled
Power	8-15kw
