NEV Air Conditioning Electric Compressor

Short Description:

Electric air conditioning compressor is the core standard configuration of air conditioning/thermal management systems for all electrified vehicle models, and it is also an important component for the upgrade of hybrid/fuel vehicles. The core application is applied to electric vehicle models without engine direct drive power, and also covers some energy-saving fuel/hybrid models. It is suitable for all categories of vehicles from passenger cars to commercial vehicles and special vehicles, and different specifications (vortex/blade, high pressure/low pressure, ordinary/heat pump special) will be matched according to the usage scenario and temperature control requirements in different vehicle models. The core application revolves around the two core requirements of cabin temperature control and vehicle thermal management.


Product Detail

Product Tags

Product Description

air compressor

New energy vehicle air conditioning electric compressor is the third generation of electric compressor products launched by NF, also known as semi-enclosed electric compressor. The product integrates DC permanent magnet synchronous motor, drive and scroll mechanism components. The third generation compressor has optimized the scroll profile, dynamic balance design and software control algorithm, and the product reliability has been further improved. At the same time, it has the characteristics of small size, high efficiency, low noise, high rotation speed and so on. lt is widely used in BEV, HEV, PHEV automobile ain conditioning and battery thermal management system

Product Parameter

Specification

NFDM14

NFDM18

NFDM24

NFDM27

Displacement

14cc

18cc

24cc

27cc

Controller/Motor

Integrated

Speed range

2000rpm~6000rpm

1000rpm~6000rpm

Maximum cooling capacity / Input power

2370W(6000rpm)/1080W

3000W(6000rpm)/1370W

4070W(6000rpm)/1850W

4780W(6000rpm)/2170W

Maximum input power

1900W

2300W

3000W

3500W

Power supply voltage

DC10V~DC420V

DC20V~DC32V

DC35V~DC750V

Energy efficiency ratio (COP) (W/W)

2.2@Pd/Ps=1.5/0.3MPaA SH/SC=10/5℃

Waterproof and dustproof requirements

IP67

Continuous operating temperature

-20℃~+85℃

Storage temperature

-40℃~+120℃

Refrigerant

R134a/R1234yf

Refrigerant oil / Injection quantity

POE68/100cc

POE68/120cc

Compressor weight

5.4 kg (including refrigerant oil)

5.5kg (including refrigerant oil)

5.8kg (including refrigerant oil)

6.0 kg (including refrigerant oil)

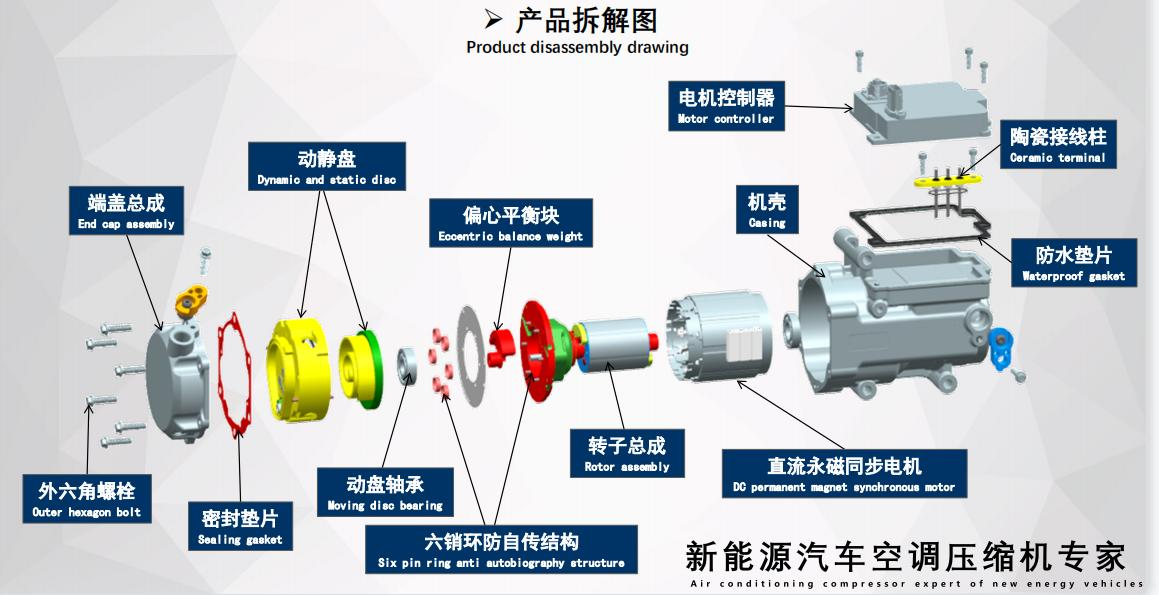

Product Disassembly Drawing

product disassembly drawing

Core Technology Of Electric Compressor

Core technology of electric compressor
