A scroll air compressor operates through the relative orbital motion of a fixed and an orbiting scroll. Air is trapped in crescent-shaped compression chambers, progressively compressed, and continuously discharged from the center, achieving smooth and efficient gas compression.
Basic Structure
The scroll air compressor primarily consists of an orbiting scroll and a fixed scroll, assembled with a 180° phase offset. The orbiting scroll is driven by an eccentric shaft and moves in a small-radius orbit around the fixed scroll, guided by an anti-rotation mechanism. The fixed scroll is mounted on the frame, forming a series of crescent-shaped compression chambers. Air is drawn in through a filter from the periphery of the fixed scroll and enters the compression chambers.
Working Principle
1. Intake Phase:
As the orbiting scroll rotates around the center of the fixed scroll, the peripheral compression chambers open to the intake port, drawing air inside.
2. Compression Phase:
During the orbital motion, the air is sealed within the crescent-shaped chambers. The chamber volume gradually decreases, steadily increasing the air pressure and enabling continuous compression.
3. Discharge Phase:
Compressed air is discharged through an axial port at the center of the fixed scroll, producing a smooth, continuous airflow. Throughout the process, intake, compression, and discharge occur simultaneously, eliminating the pulsation found in traditional reciprocating compressors.
Nanfeng Group's Latest Innovation: Oil-Free Liquid-Cooled Scroll Air Compressor (Launching 2026)

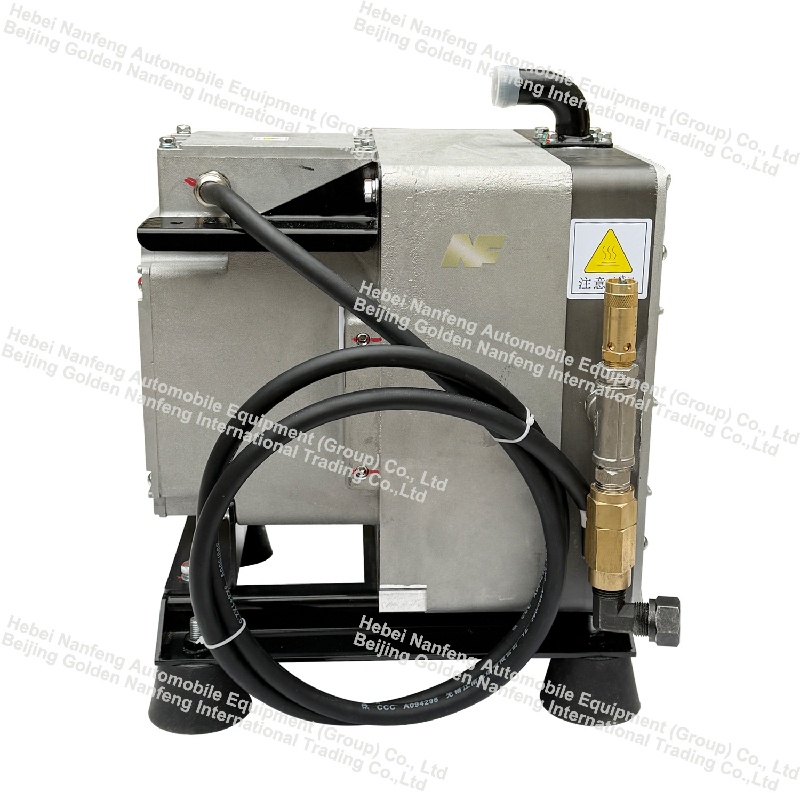

In 2026, Nanfeng Group will introduce its latest Oil-Free Liquid-Cooled Scroll EV Compressor, engineered to deliver high-performance compressed air with exceptional purity and reliability.
Key advantages include:
1. Zero Oil Contamination, High-Purity Air
Completely oil-free design eliminates the need for lubricating oil during compression, ensuring 100% oil-free compressed air output.
2. High Efficiency, Low Operating Costs
Continuous scroll engagement delivers volumetric efficiency exceeding 95%, offering greater energy savings compared to piston or screw compressors.
3. Low Noise and Low Vibration
Smooth orbital motion minimizes mechanical impact. Optimized dynamic balance eliminates the need for complex vibration damping devices.
4. Simple Maintenance, Extended Service Life
Unique floating seal technology automatically compensates for material wear, ensuring consistent airflow throughout the product lifecycle. Scrolls are made from high-strength, wear-resistant materials for long-term durability.
