A scroll compressor, also known as a scroll pump, is a type of positive displacement compressor widely used in air conditioning, refrigeration systems, heat pumps, and automotive applications. As an advanced air compressor technology, it operates by compressing air or gas internally, with both oil-lubricated and oil-free models available. Oilless air compressors are particularly suited for applications requiring clean, dry air free from oil contamination.
How Scroll Compressors Work
Scroll compressors consist of two interleaved spiral-shaped scrolls: a fixed scroll and an orbiting scroll driven by an electric motor. The orbiting scroll moves in an eccentric path relative to the fixed scroll without metal-to-metal contact. This motion traps air in crescent-shaped gas pockets, progressively compressing it as it moves toward the center of the assembly. The compressed gas is then discharged through a port at the center, which includes a check valve to prevent backflow.
This design enables internal compression, reducing leakage and improving efficiency. The compression chambers become progressively smaller, ensuring consistent and reliable performance.
Key Advantages of Scroll Compressors
-
1. High Efficiency:
- The scroll design allows for continuous and nearly pulse-free compression with minimal energy loss. Optimized discharge ports enable more air to be compressed using less power compared to other compressor types.
-
2. Low Noise and Vibration:
- With only one moving part and continuous compression cycles, scroll compressors operate smoothly with minimal vibration and noise. This makes them significantly quieter than piston or screw compressors.
-
3. High Reliability:
- The simple construction and reduced number of moving parts contribute to long-lasting, dependable performance with minimal maintenance requirements.

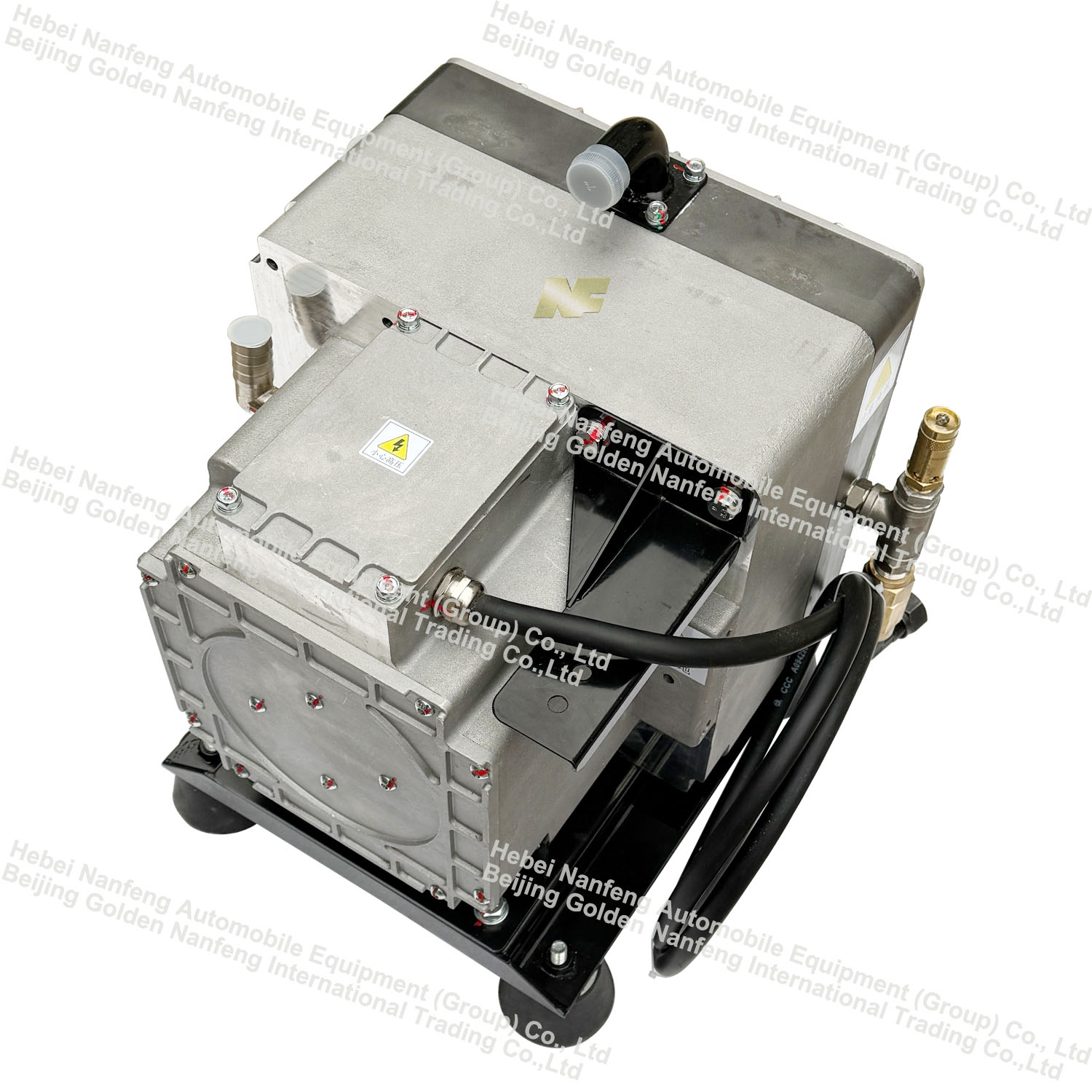

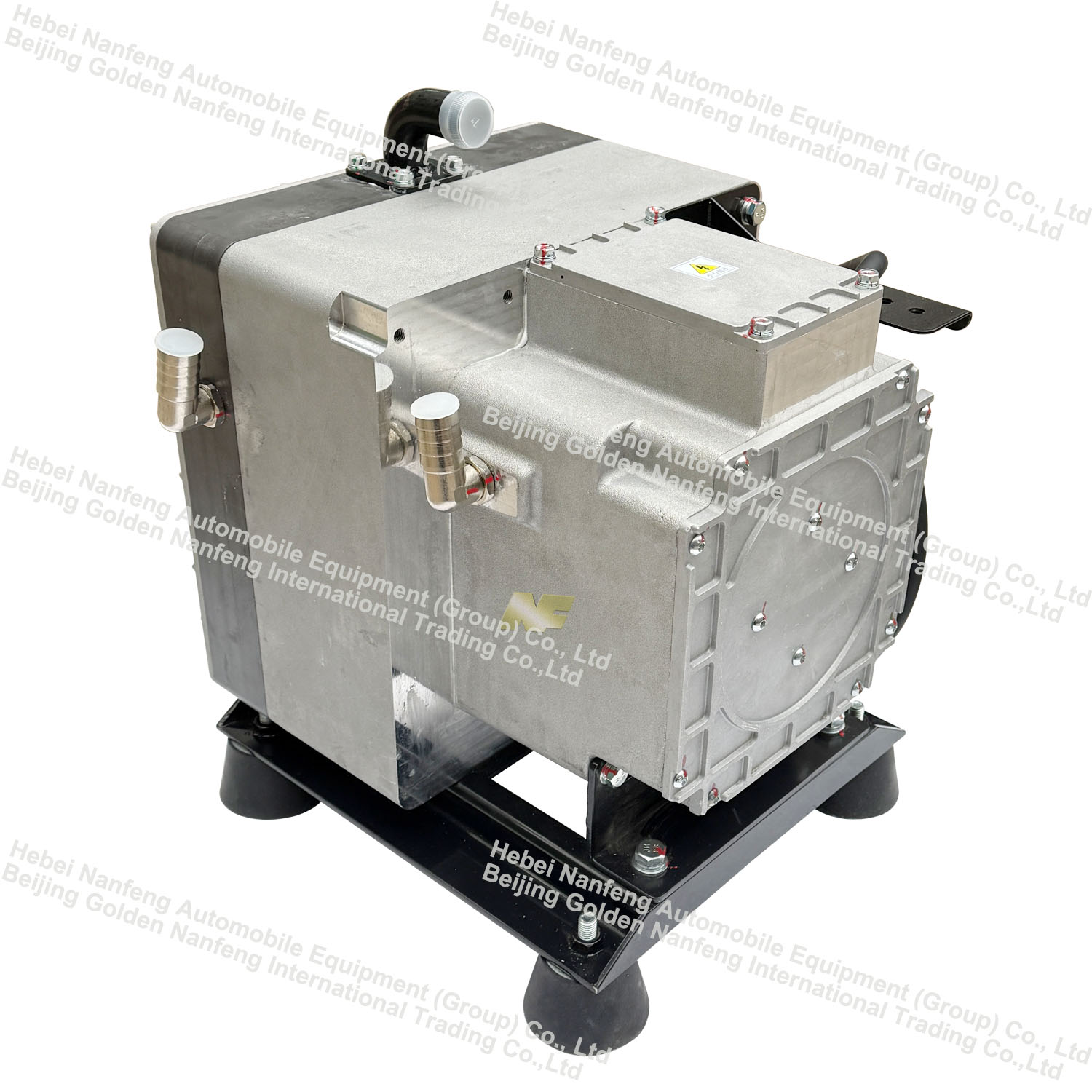

Nanfeng Group's Latest Innovation: Oil-Free Liquid-Cooled Scroll Air Compressor
In 2026, Nanfeng Group will launch its latest product: the Oil-Free Liquid-Cooled Scroll Air Compressor, designed to deliver high-performance compressed air with unmatched purity and reliability. As a dedicated EV compressor, it meets the rigorous demands of modern electric vehicles. It offers the following key advantages:
1. 100% Oil-Free Operation:
Produces high-purity compressed air without the need for additional purification equipment.
2. Ultra-Quiet Operation:
Minimal moving parts and near-zero mechanical impact ensure exceptionally quiet performance.
3. Low Vibration:
Balanced, symmetrical pressure distribution eliminates偏心 loads and ensures smooth operation.
4. High Efficiency:
Unique scroll geometry maximizes volumetric efficiency and minimizes internal energy loss.
5. Enhanced Reliability:
Fewer components and optimized thermal management ensure long-term durability.
6. Maintenance-Free Design:
With virtually no wearing parts, maintenance needs and lifecycle costs are significantly reduced.
This advanced electric air compressor is ideal for electric vehicles, including electric bus air compressor applications for city and intercity buses, as well as construction machinery, mining, and coal industry vehicles, where clean, efficient, and reliable air compression is essential.
Post time: Feb-28-2026
