Among the core components of a pure electric bus, the power battery is like the vehicle's "heart." Its performance, safety, and lifespan directly determine the bus's range, operational reliability, and passenger safety. The key to ensuring the stable operation of this "heart" is the Battery Thermal Management System (BTMS). As an indispensable core subsystem of a pure electric bus, it acts like a "smart temperature control manager" tailored for the power battery, silently regulating the battery's operating temperature, allowing the bus to operate efficiently and safely in various environments.
The pure electric bus battery thermal management system is an intelligent control system integrating temperature monitoring, heating, cooling, and temperature equalization. Its core mission is to maintain the power battery pack temperature within the optimal operating range of 20-35℃, while controlling the temperature difference between the individual cells within the battery pack to no more than 3-5℃. This fundamentally solves the problems of performance degradation, shortened lifespan, and increased safety hazards of power batteries under high and low temperature environments. For pure electric buses that operate under high loads, long mileage, and frequent charging and discharging conditions, and face complex environments such as extreme heat and cold, the importance of this system is self-evident.
To understand the value of the battery thermal management system, it's essential to first understand the "habits" of power batteries: lithium batteries are extremely sensitive to temperature. Just as humans function efficiently at suitable temperatures, power batteries achieve optimal charging and discharging performance and the longest cycle life within their optimal temperature range, while minimizing the risk of thermal runaway. When temperatures are too high, the internal chemical reactions of the battery accelerate, leading not only to reduced range and performance degradation but also potential safety incidents such as bulging and fires. When temperatures are too low, the battery's charging and discharging efficiency drops drastically, even preventing normal charging and starting, severely impacting the bus's operational efficiency, especially in frigid northern regions. The core function of the battery thermal management system is to specifically address these pain points, safeguarding the power battery.
The working principle of a battery thermal management system (BTMS) is essentially to achieve precise temperature control of the battery through energy exchange in a closed-loop circuit. The entire process is automatically controlled by the BMS without manual intervention. Depending on the season and ambient temperature, the system mainly operates in three modes: cooling, heating, and temperature equalization, flexibly switching between them to adapt to different operating conditions.
In high-temperature summer conditions, the system enters cooling mode. When the battery generates a large amount of heat during driving or charging, and the temperature sensor detects a battery temperature exceeding 35°C, the BMS immediately issues a command to activate the electronic water pump, electronic water valve, and radiator (or air conditioning chiller). The coolant circulates in the closed-loop circuit, efficiently absorbing the heat generated by the battery through the water-cooling plate or serpentine piping at the bottom of the battery pack. The coolant, carrying heat, then flows through the radiator, dissipating the heat into the outside air. Once the temperature drops to the optimal range, the system automatically adjusts its operating power to maintain temperature stability and prevent battery overheating and damage.
In low-temperature winter conditions, the system switches to heating mode. When the ambient temperature drops below 10℃, preventing the power battery from charging and discharging normally, the BMS (Battery Management System) activates the PTC heater or the vehicle's heat pump system to heat the coolant. The heated coolant flows through the battery pack, transferring heat to each cell and gradually preheating the battery temperature to above 10℃. This ensures the battery can charge and discharge normally, effectively mitigating the problem of reduced range in winter. It's worth noting that most mainstream pure electric buses currently use a combination of heat pump and PTC heating, ensuring heating efficiency while reducing energy consumption and further improving range.
Besides high and low temperature regulation, temperature uniformity control is also a crucial function of the battery thermal management system. The power battery pack consists of hundreds or even thousands of cells connected in series and parallel. Excessive temperature differences between cells can lead to overcharging and discharging of some cells, accelerating aging and even causing a decrease in cell consistency, affecting the overall performance and safety of the battery pack. Therefore, the system optimizes the coolant flow channel design to ensure the coolant flows evenly through each battery module, ensuring a more uniform temperature for each cell within the battery pack and maximizing the overall lifespan of the battery pack.

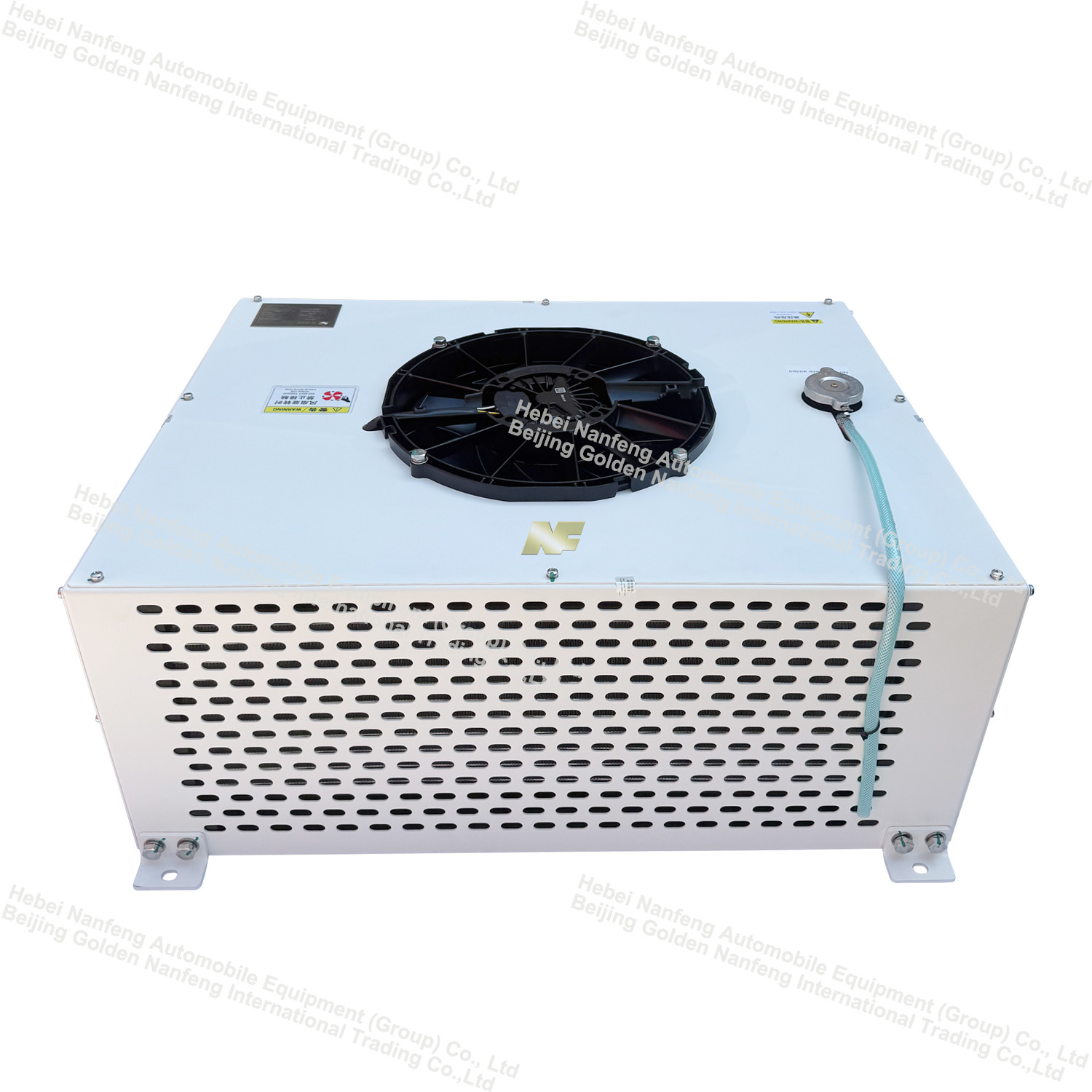

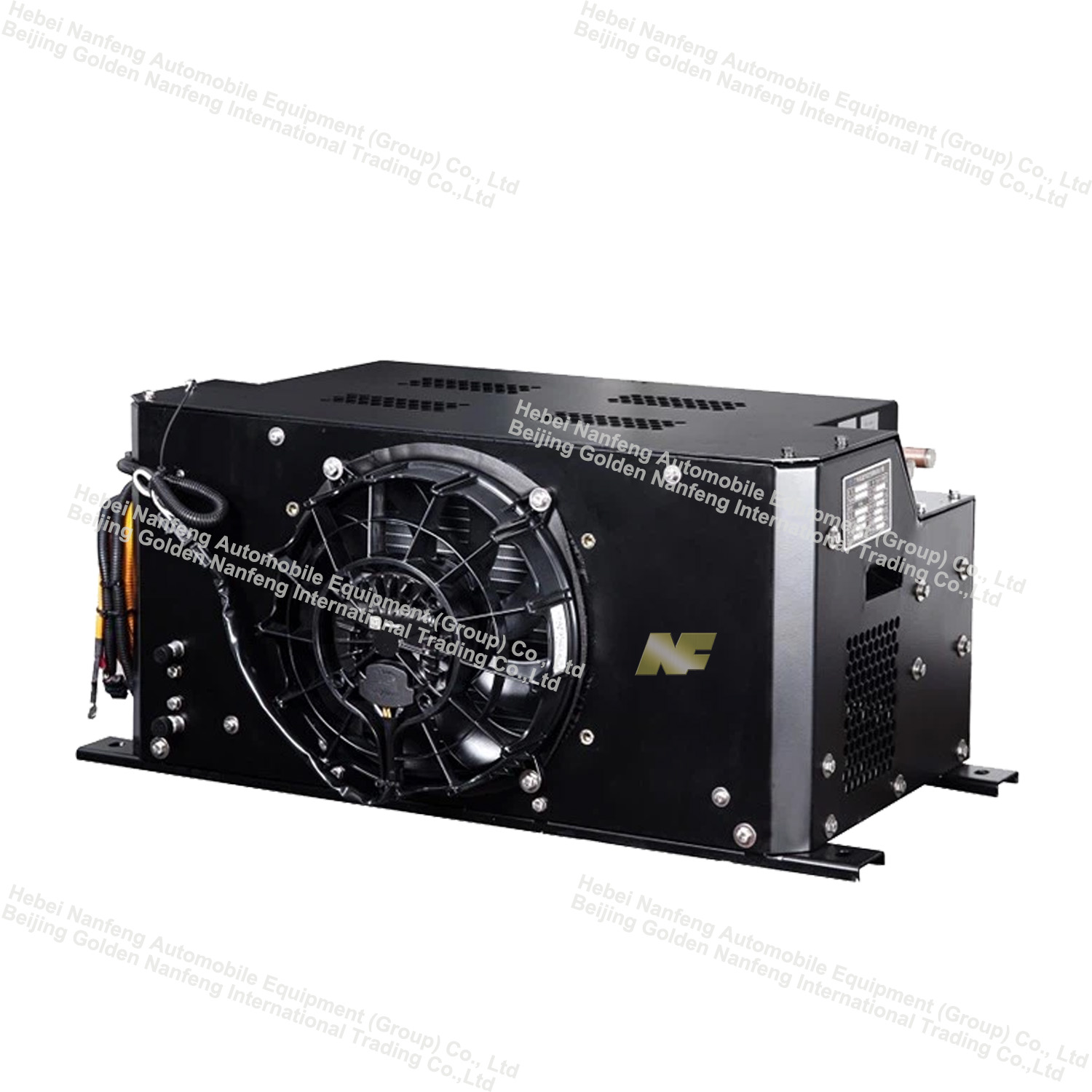

A complete battery thermal management system for a pure electric bus consists of multiple core components working collaboratively, none of which can be omitted. Temperature sensors are responsible for real-time collection of temperature data from the battery cells and coolant, providing a basis for system control; the electronic water pump provides power for coolant circulation, serving as the "power source" for energy exchange; electronic water valves are responsible for switching circuits, enabling flexible switching between heating and cooling modes; radiators and chillers are used for heat dissipation in summer, while PTC heaters and heat pump systems are used for heating in winter; the battery thermal management controller (BMS or TMS) is the "brain" of the entire system, coordinating temperature data, issuing control commands, and ensuring stable system operation; in addition, there are auxiliary components such as cooling pipes and expansion tanks to ensure the sealing and stability of the circuits.
As pure electric buses develop towards longer range, higher reliability, and lower energy consumption, the technological level of battery thermal management systems is also constantly improving. From early air-cooled systems to today's mainstream liquid-cooled systems, and then to efficient thermal management solutions integrating heat pumps and intelligent frequency conversion, the system's temperature control accuracy, energy-saving effect, and reliability are continuously optimized. Today, advanced battery thermal management systems not only achieve precise temperature control but also integrate with the vehicle's air conditioning and power system to further reduce overall vehicle energy consumption and improve operational economy.
As the "thermostat" of pure electric buses, the battery thermal management system not only safeguards the safety and lifespan of the power battery but also supports the widespread application of pure electric buses in public transportation. It addresses the operational challenges of pure electric buses in high and low temperature environments, improves vehicle reliability and safety, and lays a solid foundation for the popularization of new energy buses. In the future, with the continuous advancement of power battery technology and ongoing innovation in thermal management technology, battery thermal management systems will become more efficient, intelligent, and energy-saving, injecting more momentum into the high-quality development of pure electric buses.
