NF GROUP Battery Thermal and Cooling Management System
Description

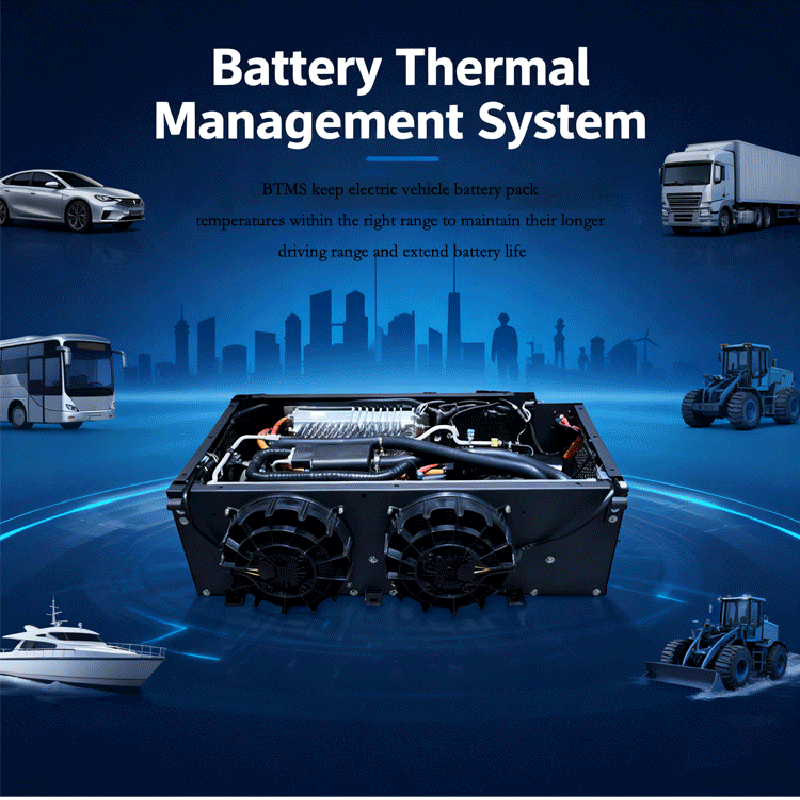

In the rapidly evolving landscape of electric mobility, the performance, safety, and longevity of the power source are paramount. NF GROUP is proud to introduce our groundbreaking Roof-mounted Battery Thermal Management Unit, a comprehensive Battery Thermal and Cooling Management System (BTMS) engineered to redefine the standards of EV battery cooling system technology. This sophisticated solution is designed to meticulously control the operating temperature of traction batteries, ensuring optimal performance under the most demanding conditions.
At the heart of this system lies an intelligent, dynamic regulation mechanism. The core of the BTMS continuously monitors both the battery's temperature and the external ambient environment. In high-temperature scenarios, the system seamlessly activates an integrated air conditioning refrigerant circuit to provide powerful, forced cooling to the thermal liquid medium. Conversely, in cold climates, a high-efficiency PTC (Positive Temperature Coefficient) heating module is engaged to rapidly and uniformly warm the same medium. This active, bidirectional temperature control is the cornerstone of our advanced EV battery cooling and heating system, guaranteeing that the battery pack consistently operates within a narrow, ideal temperature window.
The strategic roof-mounted design of this unit offers significant engineering advantages. This configuration optimizes the vehicle's interior space, protects the critical thermal management components from ground-impact damage and debris, and facilitates superior weight distribution. The conditioned thermal medium is then circulated through a network of specialized piping and plates in direct contact with the battery cells, enabling highly efficient and uniform heat exchange across the entire pack.
The operational benefits of this precise thermal management are profound. By maintaining the battery at its ideal temperature, we drastically enhance its charge and discharge stability, allowing for faster charging times and consistent power output. Safety is substantially increased, as the risks associated with thermal runaway are mitigated. Most importantly, by preventing degradation caused by temperature extremes, our system significantly extends the battery's operational cycle life, protecting the vehicle's most valuable asset and enhancing its long-term value proposition for the end-user. Our Roof-mounted BTMS is not merely a component; it is an indispensable, intelligent system dedicated to unlocking the full potential of electric propulsion.
Technical Parameter
| Model | RGL Series |
| Product Name | BTMS |
| Rated Cooling Capacity | 1KW~5KW |
| Rated Heating Capacity | 1KW~5KW |
| Wind Speed | 2000 m³/h |
| Fluid Outlet Temperature Range | 10℃~35℃ |
| Compressor | DC200V~720V |
| Water Pump | DC24V, 180W |
| Control Power | DC24V(DC20V-DC28.8V)/5A |
| Discharge Temperature Protection | 115℃ |
| Refrigerant | R134a |
Package And Delivery
Why Choose Us
Hebei Nanfeng Automobile Equipment (Group)Co.,Ltd was established in 1993,which is a group company with 6 factories and 1 international trading company.We are the biggest vehicle heating & cooling system manufacturer in China and the designated supplier of Chinese military vehicles.Our main products are high voltage coolant heater,electronic water pump,plate heat exchanger,parking heater,parking air conditioner,etc.
Our factory's production units are equipped with high tech machineries,strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
In 2006,our company has passed ISO/TS 16949:2002 quality management system certification.We also bagged the CE certificate and E-mark certificate making us among the only few companies in the world acquiring such high level certifications.Currently being the largest stakeholders in China,we hold a domestic market share of 40% and then we export them around the globe particularly in Asia,Europe and Americas.
Meeting the standards and demands of our customers have always been our top priority.It always encourages our experts to continuously brain storm,innovate,design and manufacture new products,impeccably suitable for the Chinese market and our customers from every nook of the world.
FAQ
Q1: What are your standard packaging terms?
A: Our standard packaging consists of neutral white boxes and brown cartons. For clients with licensed patents, we offer the option of branded packaging upon receipt of a formal authorization letter.
Q2: What are your payment terms?
A: Our standard payment term is 100% T/T (Telegraphic Transfer) in advance before production commences.
Q3: What are your delivery terms?
A: We offer flexible delivery terms to accommodate your logistics preferences, including EXW, FOB, CFR, CIF, and DDU. The most suitable option can be determined based on your specific needs and experience.
Q4: What is the estimated delivery time?
A: The production time typically ranges from 30 to 60 days after we receive the deposit. The exact duration depends on two key factors:
Product Model: Customization may require additional time.
Order Quantity.
We will provide a precise date upon finalizing your order.
Q5: What is your policy on samples?
A:
Availability: Samples are available for items currently in stock.
Cost: The customer bears the cost of the sample and express shipping.
Q6: Are all products tested before delivery?
A: Absolutely. Every single unit undergoes a full test before it leaves our factory, guaranteeing that you receive products that meet our quality standards.
Q7: How do you ensure a long-term, successful partnership?
A: Our approach is based on two core commitments:
Reliable Value: Guaranteeing high quality and competitive pricing to maximize our clients' success, which is consistently confirmed by customer feedback.
Sincere Partnership: Treating every client with respect and integrity, focusing on building trust and friendship beyond mere business transactions.
