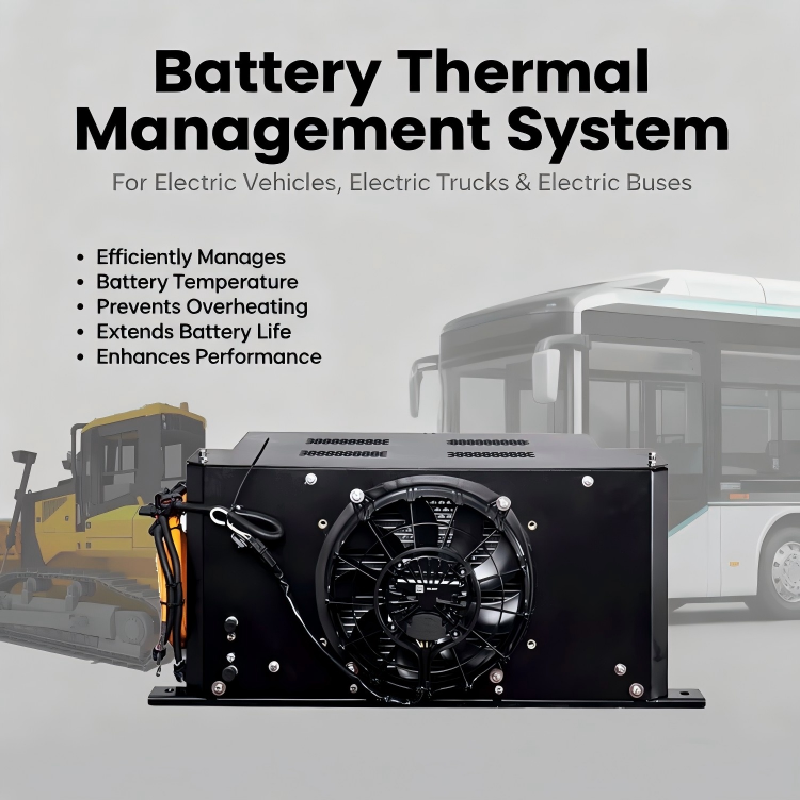

NF GROUP New Design BTMS Thermal Management System for Electric Vehicles
Description
NF Battery Thermal Management Systems are designed for new energy commercial vehicles, providing precise thermal management for power batteries in a wide range of applications including pure electric buses, hybrid buses, range-extended hybrid light trucks, hybrid heavy trucks, pure electric construction vehicles, pure electric logistics vehicles, pure electric excavators, and pure electric forklifts.
By accurately regulating temperature, the system ensures that power batteries operate within the optimal temperature range even in extreme climates—from high-temperature regions to severe cold zones. This significantly extends battery service life and enhances overall safety.
Performance Features
- 1. Robust & Customizable Design: Sleek and harmonized appearance. Components can be customized to meet requirements for water, oil, corrosion, and dust resistance. The BTMS features a well-thought-out structural design, user-friendly operation, and multiple selectable working modes. Battery Management System delivers high measurement and control accuracy, excellent test repeatability, strong reliability, long operational life, and compliance with industry standards.
- 2. Smart Control & Comprehensive Protection: Key electrical parameters are readable and controllable via the host computer through CAN communication. The Thermal Management System for Electric Vehicles incorporates full protection functions such as overload, under-voltage, over-voltage, over-current, over-temperature, and abnormal system pressure protection.
- 3. Space-Saving & Reliable Integration: Modular design simplifies installation and maintenance. Excellent EMC performance ensures compliance with relevant standards, without interfering with the stability of the tested product or the reliable operation of surrounding equipment.
- 4. Modular & Adaptable Configuration: Modular units can be flexibly installed according to the structural layout of different vehicle models.
Technical Parameter
| MODEL | XD-288 | XD-288A | XD-288B | XD-288C |
| Cooling capacity | 3kw | 5kw | 5kw | 5kw |
| Heating capacity | // | // | 5kw | 7.5kw |
| Compressor displacement | 24CC/r | 27CC/r | 27CC/r | 27CC/r |
| Condensing air volume | 2000m³/h | 2200m³/h | 2200m³/h | 2200m³/h |
| HV power consumption | ≤13A | ≤15A | ≤15A | ≤15A |
| LV power consumption | ≤17A | ≤20A | ≤20A | ≤20A |
| Refrigerant | R134a | R134a | R134a | R134a |
| Unit weight | 28KG | 30KG | 38KG | 50KG |
| Physical dimension(mm) | 770*475*339 | 770*475*339 | 720*525*339 | 900*565*339 |
| Installation Dimension |
8m bus |
8-10m bus / light & heavy truck |
Pure electric excavators & forklifts / light truck |
Hybrid vehicle |
Shock-Mitigated Encasement
Why Choose Us
Hebei Nanfeng Automobile Equipment (Group) Co., Ltd., founded in 1993, is a leading Chinese manufacturer of vehicle thermal management systems. The group comprises six specialized factories and one international trading company, and is recognized as the largest domestic supplier of heating and cooling solutions for vehicles.
As an officially designated supplier for Chinese military vehicles, Nanfeng leverages strong R&D and manufacturing capabilities to deliver a comprehensive product portfolio, including:
- BTMS
- High-voltage coolant heaters
- Electronic water pumps
- Plate heat exchangers
- Parking heaters & air conditioning systems
We support global OEMs with reliable, high-performance components tailored for commercial and specialty vehicles.
Our factory's production units are equipped with high tech machineries,strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
In 2006,our company has passed ISO/TS 16949:2002 quality management system certification.We also bagged the CE certificate and E-mark certificate making us among the only few companies in the world acquiring such high level certifications.Currently being the largest stakeholders in China,we hold a domestic market share of 40% and then we export them around the globe particularly in Asia,Europe and Americas.
Meeting the exacting standards and evolving demands of our customers is our core mission. This commitment drives our team of experts to continually innovate, design, and manufacture high-quality products that are ideally suited for both the Chinese market and our diverse international clientele.
