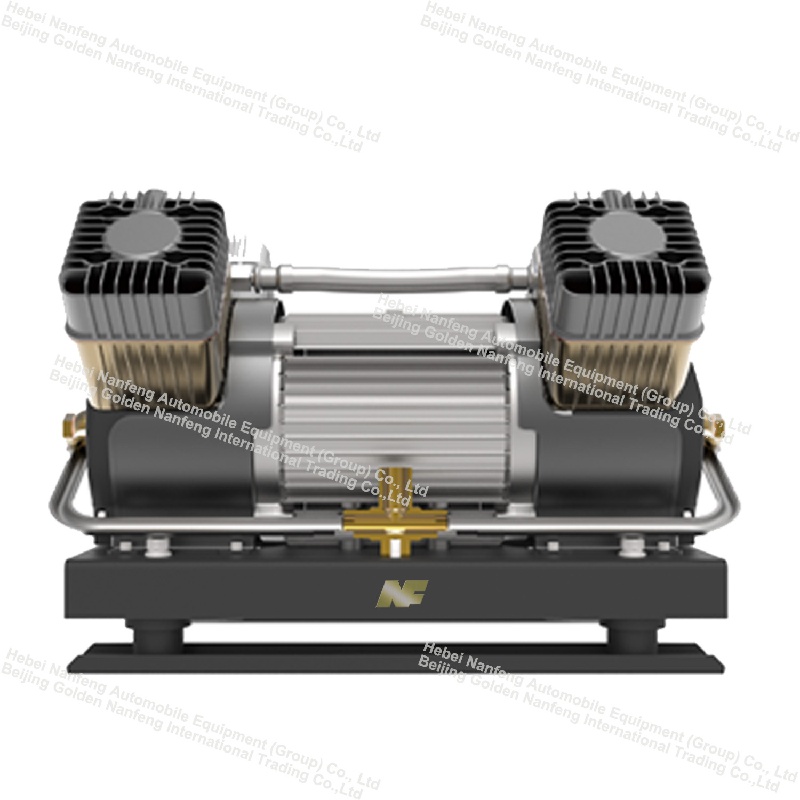

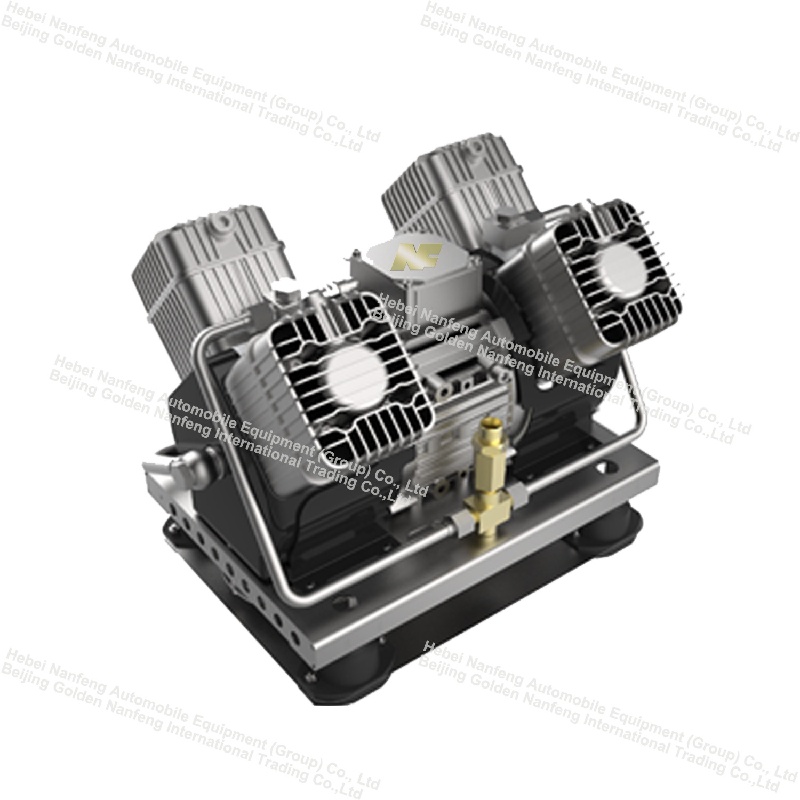

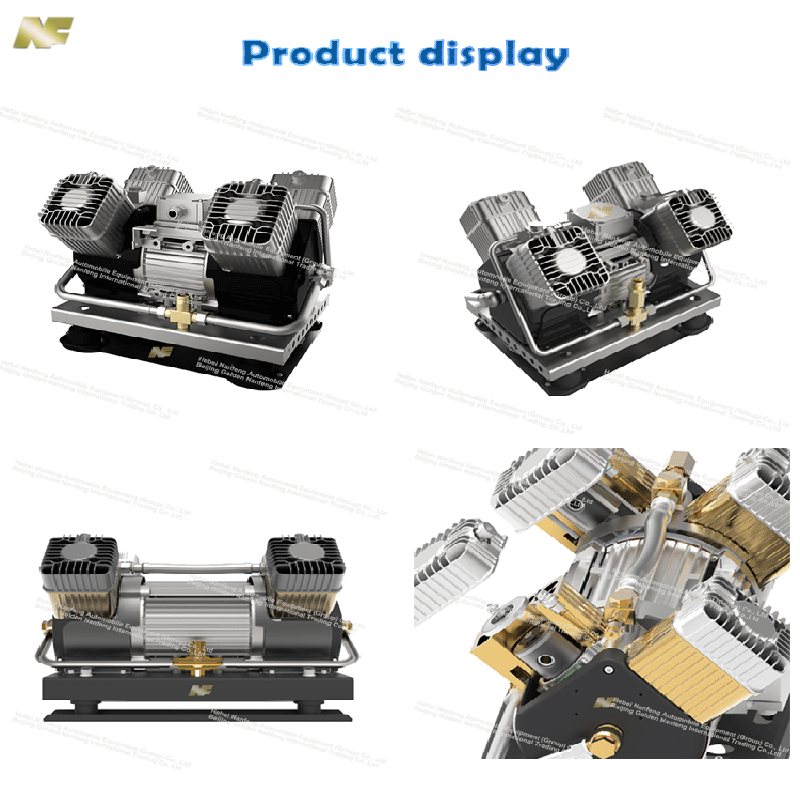

Oil-Free Positive Displacement Air Compressor For Electric Bus,Truck

Short Description:

The principle of an oil-free air compressor: With each rotation of the compressor crankshaft, the piston reciprocates once, and the cylinder successively completes the processes of intake, compression, and exhaust, thus completing one working cycle.

Send email to us

Product Detail

Product Tags

Product Description

Electric air compressor Technology and Performance Characteristics:

1. The piston and piston rings are made of imported high-wear-resistant PTFE material, with a temperature resistance exceeding 200℃.

2. The cylinder features a lightweight design with a highly wear-resistant ceramic layer on the inner surface.

3. High-pressure bearings from Japanese NSK and IKO are used to improve the bearings' resistance to impact loads. The entire assembly has passed over 10,000 hours of continuous 24-hour loading tests.

4. The unit has a fast air intake speed, better meeting the air demand of various vehicle operating conditions.

5. The unit's low exhaust temperature eliminates the need for additional cooling devices in the vehicle's piping.

6. The symmetrical distribution of the four cylinders and the use of enlarged, high-load-bearing, and long-life rubber vibration damping pads result in low vibration intensity.

Product Parameter

Project Representative Model	Displacement150L-170L	Displacement220L-260L		Displacement 280L				Displacement330L	Displacement360L	Displacement 380L
Project Representative Model	QXAC1.5P/2G	QXAC2.2P/4G001	QXAC2.2P/4G501	QXAC3P/4G101	QXAC3P/4G401	QXAC3P/4G411	QXAC3P/4G301	QXAC3P/4G301	QXAC3P/4G601	QXAC3P/4G601
Style Description	External fan type	External fan type	Fan built-in	External fan type	Fan built-in	Fan built-in, low peak starting current	Built-in fan, low noise	Fan built-in	Fan built-in	Fan built-in
Number of cylinders（n）	2	4	4	4	4	4	4	4	4	4
Cylinder diameter(mm)	55	50	55	55	55	55	60	60	60	60
Journey(mm)	18	18	18	18	18	18	18	18	18	21
1.0MPa displacement（L/Mmin）	≥150	≥209	≥209	≥266	≥266	≥266	≥266	≥313.5	≥342	≥361
0.68-1MPa inflation time (actual value) @ gas tank (L) ≤180S	65-86S@60-80L	60S@100L	60S@100L	70S@140L	70S@140L	70S@140L	70S@140L	70S@180L	65S@180L	55S@180L
motor power（KW）	1.5	2.2	2.2	3	3	3	3	3.5	4	4
Rated voltage（V）	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380	AC220/AC380
Rated current（A）	3.6	4.5	6.5	10	11	5.5	11	11	8.5	8.5
Peak current（A）	7	12.5	13	19	30	13	30	30	19.5	19.5
Torque(N/m)	12	15	19.1	19.1	19.1	19.1	19.1	19.1	24	24
Rated speed（r/min）	1500	1500	1200	1500	1500	1500	1200	1500	1650	1650
Rated frequency（Hz）	100	100	80	100	100	100	80	100	110	110
Protection level	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Noise Level（dB）	≤75	≤75	≤75	≤75	≤75	≤75	≤75	≤78	≤80	≤80
Rated exhaust pressure（Mpa）	1	1	1	1	1	1	1	1或1.2	1或1.2	1或1.2
Cooling method	air-cooled	air-cooled	air-cooled	air-cooled	air-cooled	air-cooled	air-cooled	air-cooled	air-cooled	air-cooled
Vibration intensity value（mm/s）	≤45	≤27	≤27	≤27	≤27	≤27	≤27	≤27	≤27	≤27
Safety valve opening pressure（Mpa）	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4	1.25 or 1.4
Exhaust temperature（℃）	≤95	≤95	≤95	≤110	≤110	≤110	≤110	≤120	≤130	≤140
Temperature protection（℃）	140	140	Optional	140	Optional	Optional	Optional	140	140	140
Equipment temperature signal detection element	PT100	PT100	Optional	PT100	Optional	Optional	Optional	PT100	PT100	PT100
Size (for reference only, customizable)	375380390	510380390	550385330	510380390	580385330	580385330	580385330	580385330	580385330	510380390
weight（Kg）	28	42	43	43	46	45	46	46	48	48
Applicable to the volume (L) of the gas tank in the whole vehicle.	60L-80L	80L-120L	80L-120L	100L-160L	100L-160L	100L-160L	100L-160L	≥160L	≥180L	≥180L
Applicable vehicle models	Light trucks and buses under 8 meters	Small and medium-sized trucks or 8-10 meter electric buses	Small and medium-sized trucks or 8-10 meter electric buses	Medium-sized trucks, 10-12 meter electric buses	Medium-sized trucks, 10-12 meter electric buses	Medium-sized trucks, 10-12 meter electric buses	Medium-sized trucks, 10-12 meter electric buses	Medium and large trucks, heavy-duty and special-purpose vehicles, or buses over 12 meters in length	Medium and large trucks, heavy-duty and special-purpose vehicles, or buses over 12 meters in length	Medium and large trucks, heavy-duty and special-purpose vehicles, or buses over 12 meters in length
