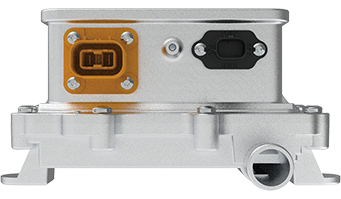

24KW 800V Thick Film High Voltage Coolant Heater For Electric Commercial Vehicles
Product Description
High-voltage liquid electric heaters (HVCH) are ideal heating systems for electric and hybrid vehicles. They convert direct current electrical energy into heat energy with virtually no loss. NFs utilize rare-earth thick-film heating technology, adhering firmly to the heat exchanger and providing a large contact area with the coolant. Therefore, HVCHs achieve faster heating times, higher precision, and greater efficiency.
Customers can achieve greater driving range with the same battery capacity and enjoy optimal temperature control comfort. Furthermore, they can provide gentle yet effective regulation of battery temperature. This system occupies less installation space, allowing for easy integration into various vehicles.
Product Parameter
|
Model
|
NFHVH-F800V |
|
Rated Power（kw） |
22-26 |
|
Working Voltage（v） |
450-950 |
|
Control Voltage（v） |
12/24 |
|
Ambient Temperature Range(℃) |
~40-125 |
|
Storage Temperature Range(℃) |
~40-125 |
|
Insulation Resistance(MΩ) |
＞500 |
|
Insulation withstand voltage(v) |
4000 |
|
Communication Methods |
CAN/LIN |
|
Weight(kg) |
7.9 |
|
Dimension(mm) |
392X252X111 |
|
Outlet Diameter（mm） |
Φ25 |
Product Features
1. Employs rare-earth thick-film heating technology.
2. HVCH can be customized to meet customer needs.
3. High efficiency, precise temperature control, and smaller installation space requirements.
4. Ultra-compact modular design: small size and light weight.
5. Reliable quality, long lifespan, and no power degradation.
6. Low starting inrush current, low ripple current, and precise stepless controllability.
7. Low overall energy consumption, increasing vehicle mileage.
8. Low overall operating cost.
