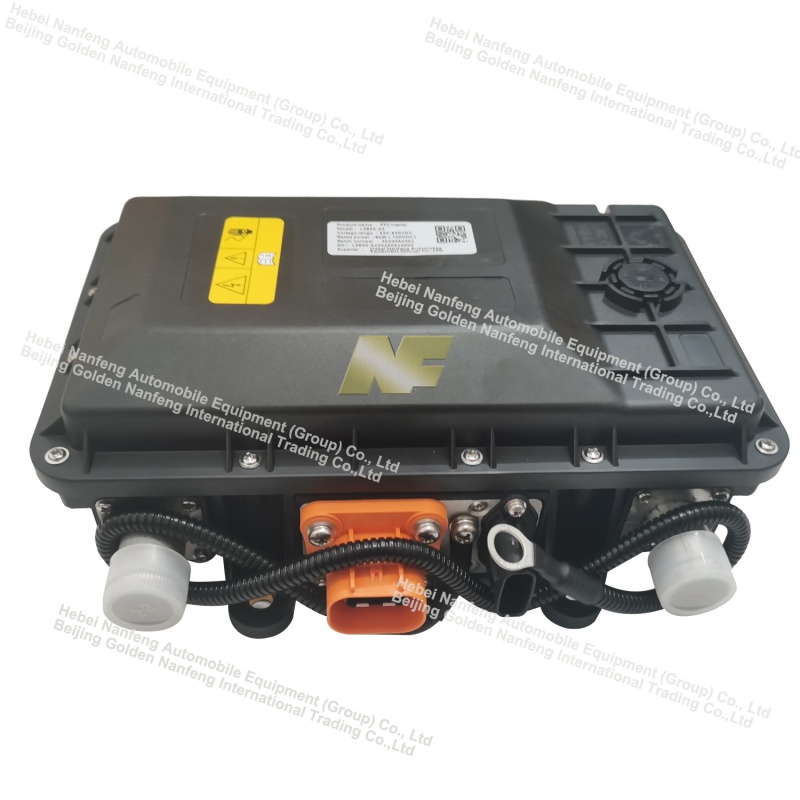

8KW 600V Pure Electric Bus PTC Coolant Heater

Short Description:

NF group is a professional manufacture that produce high voltage coolant heater，our PTC water heater power can make from 1kw to 35kw.we provide our battery coolant heater to many OEMs

Send email to us

Product Detail

Product Tags

Product Description

High-Voltage Coolant Heater (HVCH)
The High-Voltage PTC Water Heater is a critical thermal management component for new energy vehicles (including battery electric vehicles, plug-in hybrid electric vehicles, and fuel cell vehicles). Powered by a high-voltage DC battery pack (400V/800V), it heats the coolant to provide a heat source for cabin heating, battery preheating, defrosting/demisting, and thermal compensation for heat pump systems.
Utilizing PTC ceramic or thick-film heating technology, the Electric Coolant Heater features automatic temperature limiting, high thermal efficiency, operational safety, and rapid temperature response. Controlled via CAN bus and low-voltage signal interfaces, it is widely used in passenger cars, light commercial vehicles, and recreational vehicles (RVs).

Product parameter

Model	WPTC07-1	WPTC07-2
Rated power (kw)	10KW±10%@20L/min，Tin=0℃
OEM Power(kw)	6KW/7KW/8KW/9KW/10KW
Rated Voltage(VDC)	350v	600v
Working Voltage	250~450v	450~750v
Controller low voltage (V)	9-16 or 18-32
Communication protocol	CAN
Power adjust method	Gear Control
Connector IP ratng	IP67
Medium type	Water: ethylene glycol /50：50
Overall dimension (LWH)	23614783mm
Installation dimension	154 (104)*165mm
Joint dimension	φ20mm
High voltage connector model	HVC2P28MV102, HVC2P28MV104 (Amphenol)
Low voltage connector model	A02-ECC320Q60A1-LVC-4(A) (Sumitomo adaptive drive module)

Temperature

Description	Condition	Minimum	Typical	Maximum	Unit
Storage temperature		-40		105	℃
Working temperature		-40		105	℃
Environment humidity		5%		95%	RH

Low voltage

Description	Condition	Minimum	Typical	Maximum	Unit
Control voltage VCC		18	24	32	V
Ground			0		V
Supply current	Steady state current	90	120	160	mA
Starting current				1	A

High voltage

Description	Condition	Minimum	Typical	Maximum	Unit
Supply voltage	Turn on heating	480	600	720	V
Supply current	Nominal condition		13.3		A
Inrush current	Nominal condition			17.3	A
Stand-by current	Nominal condition			1.6	mA

Product size

Air conditioning control framework

In order to ensure the protection grade of the product IP67, insert the heating core assembly into the lower base obliquely, cover the (Serial No. 9) nozzle sealing ring, and then press the outer part with the pressing plate, and then put it on the lower base (No. 6) is sealed with pouring glue and sealed to the upper surface of D-type pipe. After assembling other parts, the sealing gasket (No. 5) is used between the upper and lower bases to ensure the good waterproof performance of the product.

Advantage

Electricity is used to heat the antifreeze, and the Electric PTC Coolant Heater For Electric Vehicle is used to heat the interior of the car. Installed in the water cooling circulation system

Warm air and temperature controllable Use PWM to adjust the drive IGBT to adjust the power with short-term heat storage function Whole vehicle cycle, supporting battery thermal management and environmental protection.
