Automotive electric water pump for bus, for truck

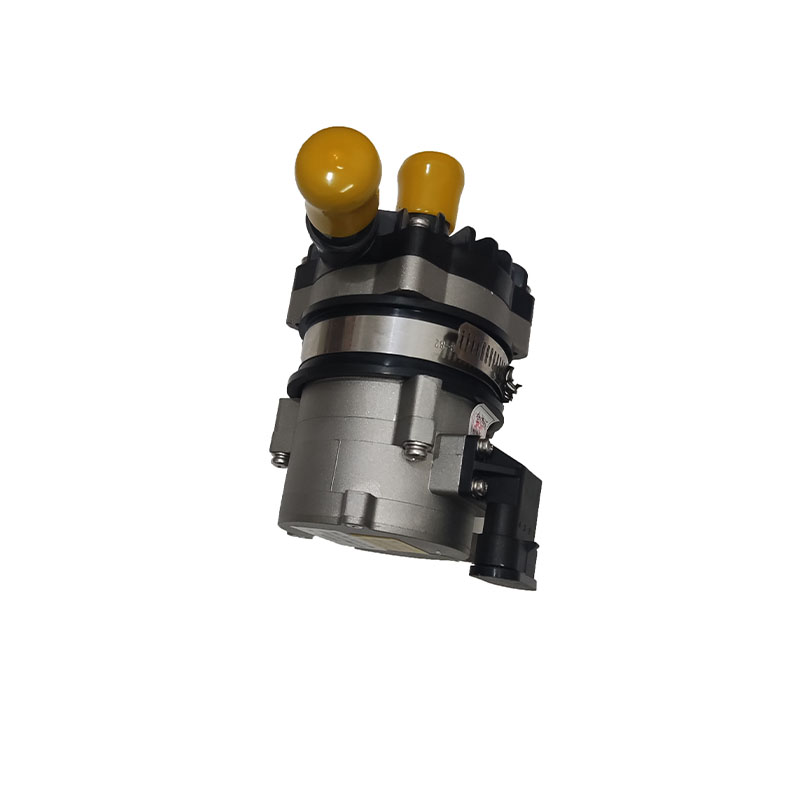

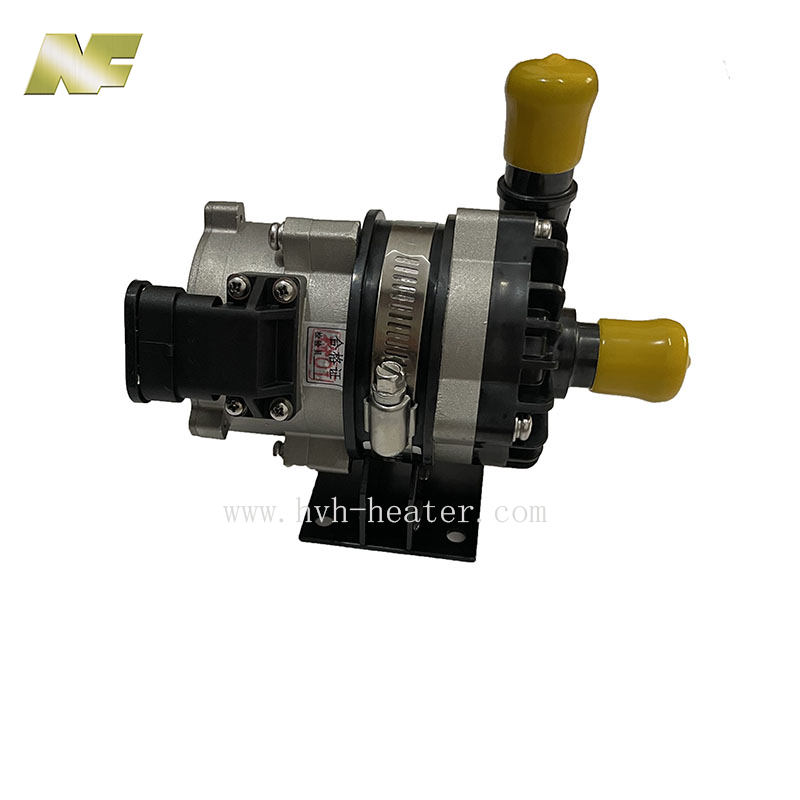

Automotive electric water pump Description
The automotive electric water pump is a key component in the engine cooling system, mainly used to promote the circulation of coolant, maintain the engine within a suitable working temperature range, and prevent overheating and damage.
The main function of automotive electric water pump
Promote coolant circulation: The automotive electric water pump drives the coolant to circulate inside the engine, extracting hot water from the engine and injecting cold water to maintain the engine temperature within an appropriate range. This process ensures that the engine will not be damaged due to overheating during operation.
Assist with thermostat operation: The automotive electric water pump works in conjunction with the thermostat to regulate the circulation path of the cooling water based on the engine temperature. When the engine temperature is low, the thermostat closes and the cooling water only circulates inside the engine; When the temperature reaches a certain level, the thermostat opens and the water pump pumps hot water into the radiator, which is then cooled by the fan during vehicle operation.
Maintain stable engine operation: The normal operation of the water pump ensures that the engine can maintain a stable temperature under various working conditions, avoiding performance degradation or damage caused by excessive temperature.
Automotive electric water pump Parameter
| Model | Rated voltage | Rated power | Rated Operating Condition | Protection Level |
| HS-030-221 | DC12V | 120W | 900L/ H@11.5m | IP68 |
| HS-030-262 | DC24V | 120W | 900L/ H@11.5m | IP68 |
| HS-030-262C | DC24V | 120W | 3000L/ H@6m | IP68 |
| HS-030-272 | DC24V | 180W | 2000L/ H@12m | IP68 |
| HS-030-274 | DC48V | 180W | 2000L/ H@12m | IP68 |
Automotive electric water pump Advantages
1. High efficiency & energy saving
Electronically controlled speed, operates only as needed, significantly reduces power consumption compared to mechanical pumps.
Improves overall vehicle energy efficiency and extends driving range.
2. Precise thermal management
Real-time adjustable flow based on battery, motor and controller temperature.
Maintains optimal operating temperature (25–40°C) for key components, enhancing performance and lifespan.
3. Flexible layout & integration
Compact size, no mechanical transmission structure, easy to arrange in limited vehicle space.
Highly compatible with integrated thermal management systems.
4. Wide temperature adaptability
Works normally in extreme environments from -40°C to 125°C.
Supports battery preheating in low temperature and efficient heat dissipation during fast charging.
5. High reliability & long service life
Brushless motor design, no wear parts, low noise and vibration.
Long service life up to 20000 hours, meeting vehicle lifetime requirements.
6. Intelligent & safe operation
Supports CAN/PWM communication, real-time fault monitoring and protection.
High insulation performance, IP67/IP6K9K protection, ensuring safe use in high-voltage EV systems.
