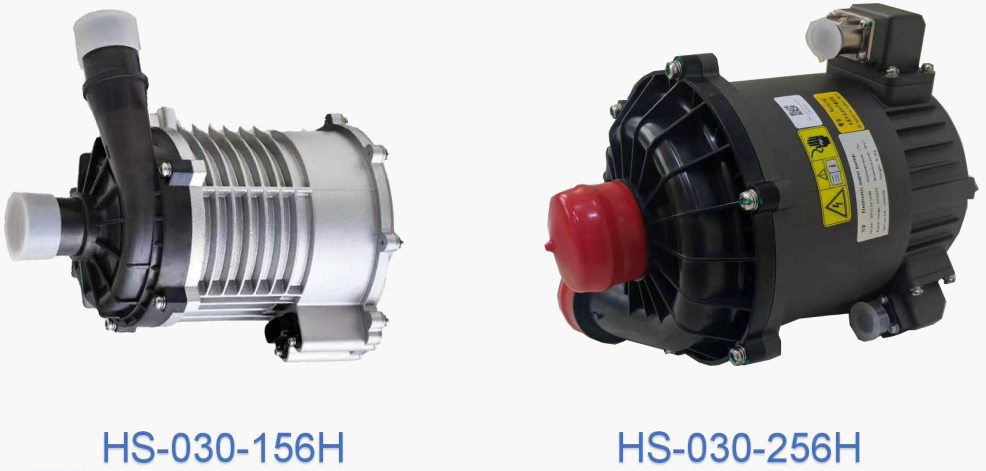

High Voltage Electronic Water Pump Brushless DC Coolant Pump For EV Bus Truck Fuel Cell Vehicle Thermal Management Cooling System

Working Principle

This high‑voltage electronic water pump adopts high‑voltage brushless permanent‑magnet motor and magnetic‑drive sealing structure. Controlled by vehicle ECU, it receives real‑time temperature feedback from thermal sensors and adjusts rotating speed via CAN or PWM signals. Driven by centrifugal force from impeller, it pushes coolant circulating inside the closed cooling loop. Different from belt‑driven mechanical pumps, it works independently of powertrain speed, realizing on‑demand variable‑flow heat dissipation for high‑power vehicle components. It can keep post‑cooling operation after vehicle power‑off to avoid component overheating damage。

Core Advantages

✅ **High‑voltage large‑flow output**: Designed for high‑voltage vehicle platform, provides sufficient coolant flow to satisfy multi‑loop thermal management demand for heavy‑duty EV and fuel‑cell vehicles.
✅ **Magnetic‑drive zero‑leakage**: Non‑contact magnetic transmission eliminates shaft‑seal leakage risk; IP67 waterproof grade adapts to harsh vehicle working environment.
✅ **Intelligent CAN / PWM speed control**: Real‑time flow adjustment according to component temperature, reduces useless power consumption and improves whole‑vehicle energy efficiency.
✅ **High reliability & long lifespan**: Brushless motor structure with low wear, low noise, supports continuous long‑time running. Built‑in multiple protection functions: dry‑run, over‑voltage, over‑current and over‑temperature protection.
✅ **Compact modular layout**: Easy for installation on electric bus, electric truck and fuel‑cell system.

Applications

It serves as key cooling equipment for high‑voltage new‑energy vehicles. Mainly applied for liquid cooling of high‑capacity power battery packs, drive motors, motor controllers, OBC and DC‑DC converters. Perfect fit for electric buses, heavy‑duty electric trucks, logistics commercial EVs. Also widely used for cooling circulation of hydrogen fuel‑cell stacks for fuel‑cell vehicles.
