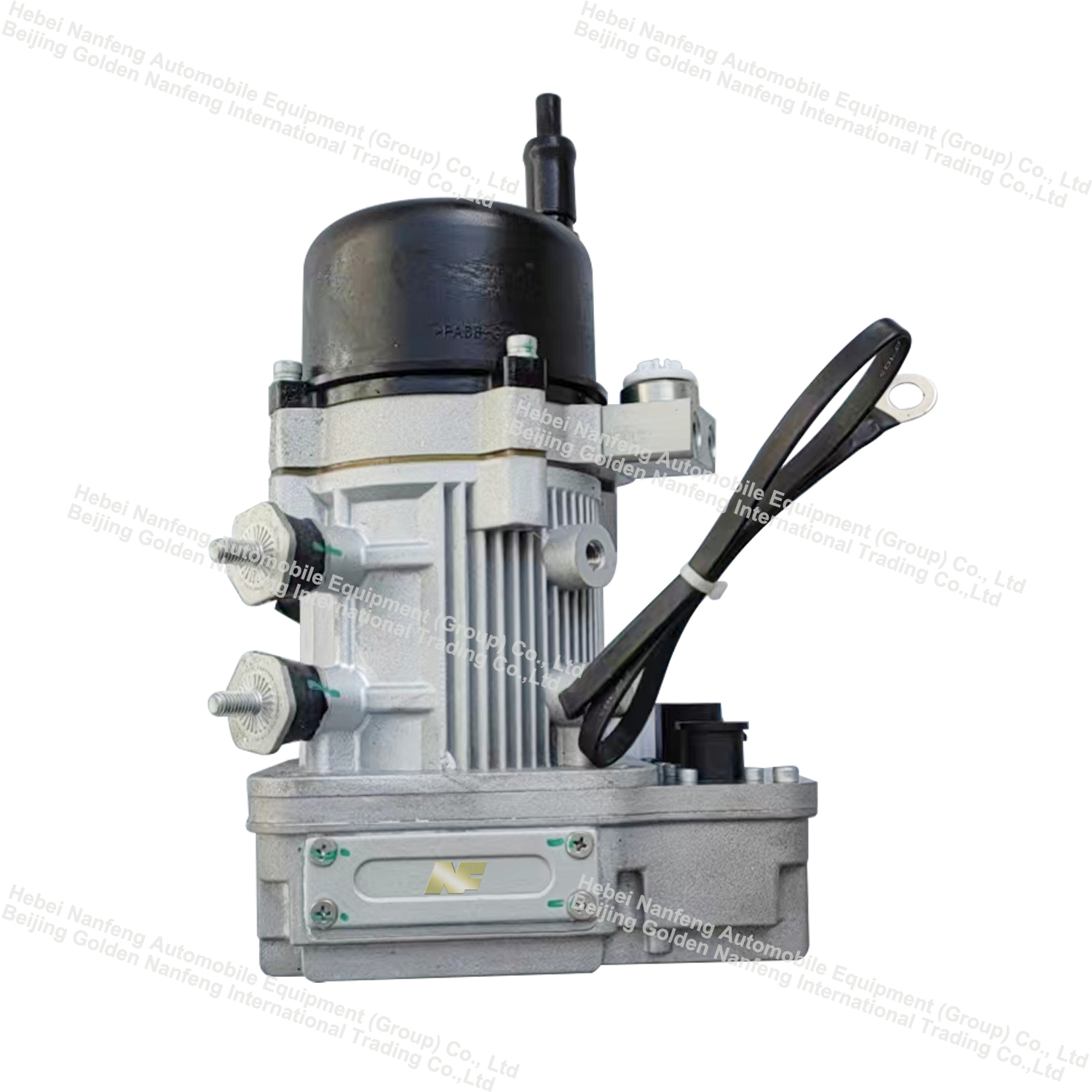

24V Integrated Emergency Electro-Hydraulic Power Steering Pump

Short Description:

A 24V electric hydraulic pump is a micro/compact hydraulic power unit driven by a 24-volt DC power supply, designed to convert electrical energy into hydraulic energy (pressurized oil). It is primarily utilized in vehicle-mounted, portable, and off-grid applications to provide hydraulic power for driving actuators such as hydraulic cylinders and motors.

Send email to us

Product Detail

Product Tags

Product Description

The electric-hydraulic power steering pump is the core power component of the electro-hydraulic power steering (EHPS) system; acting as the "heart" of the entire system, it replaces the engine-belt-driven mechanical pump found in traditional hydraulic steering systems with an electric motor.
Its primary function is to convert the mechanical energy of the electric motor into hydraulic energy, supplying high-pressure fluid to the steering system to drive the power steering cylinder and provide steering assistance. The key distinction from traditional mechanical hydraulic pumps is that it operates independently of the engine, is driven directly by an electric motor, and is regulated on demand by an electronic control unit (ECU).

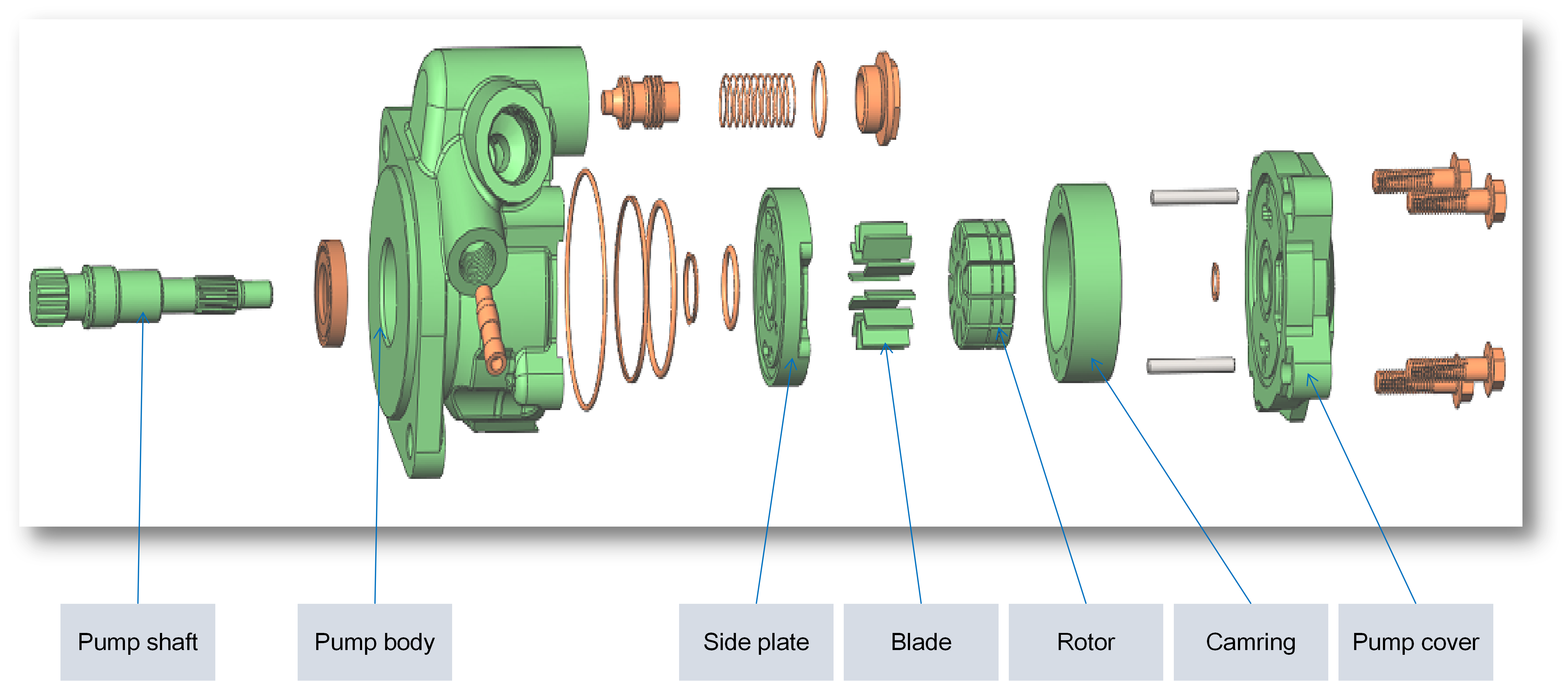

Product Structure

Product Features

1. The product features a high degree of integration, achieving a highly compact assembly of the motor, controller, emergency valve block, and oil pump;
2. The product is characterized by its compact size, light weight, and ease of installation;
3. The product features a small displacement and low energy consumption; it can automatically adjust its output flow and power, and immediately take over operations in the event of a main pump failure;
4. The product offers strong versatility, requiring no redesign of other vehicle components;
5. The system ensures high operational reliability, as well as excellent interchangeability and maintainability.
