Electric Commercial Vehicle Electro Hydraulic Power Steering

Short Description:

A 12V electric hydraulic pump is a micro/compact hydraulic power unit driven by a 12-volt DC power supply, designed to convert electrical energy into hydraulic energy (pressurized oil). It is primarily utilized in vehicle-mounted, portable, and off-grid applications to provide hydraulic power for driving actuators such as hydraulic cylinders and motors.

Send email to us

Product Detail

Product Tags

Product Description

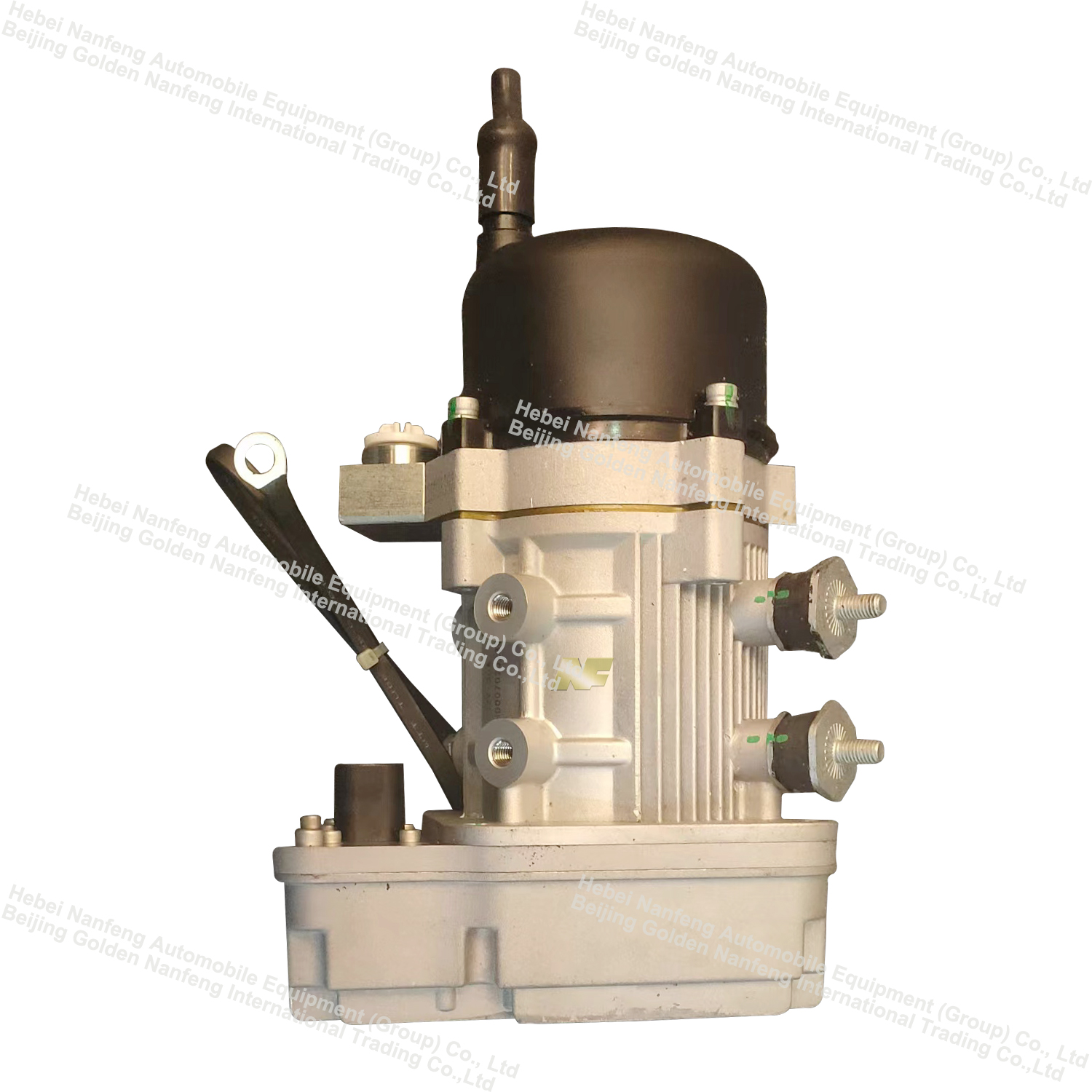

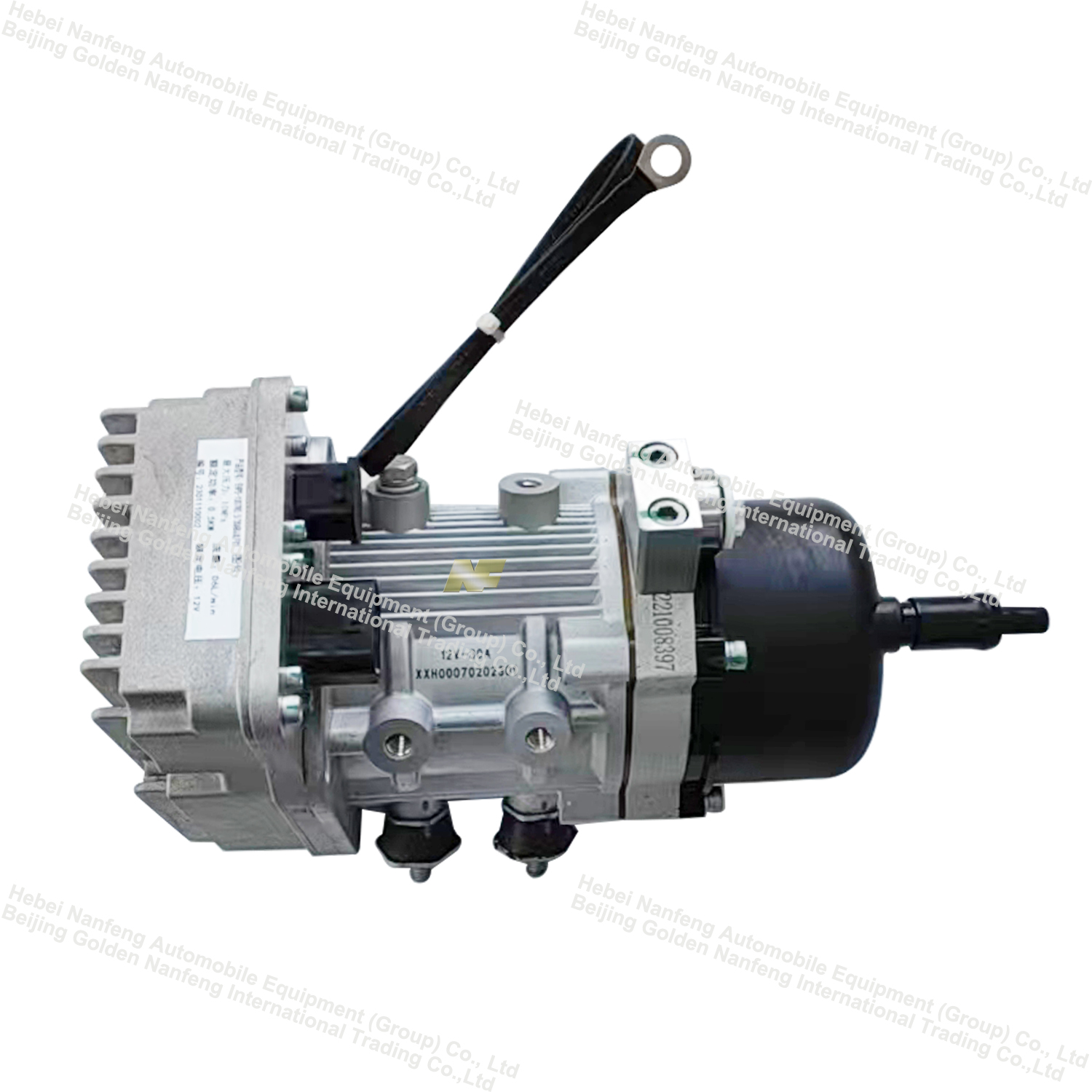

The Electric-Hydraulic Power Steering Pump(EHPS) Assembly (hereinafter referred to as the "Electric Pump") serves as the steering power source for pure electric and hybrid electric buses, providing reliable steering assistance to the vehicle and acting as a critical component of the steering system. The Electric Pump consists of a vane pump, an AC induction motor, and various connecting components. The vehicle's main power source utilizes a controller to invert DC power into the AC induction power required by the motor; once the circuit is activated, the motor begins to operate, subsequently driving the hydraulic pump to supply fluid to the steering gear cylinder, thereby satisfying the requirements of the power steering system. This product boasts numerous advantages—including an overall protection rating of IP67, extremely compact dimensions and light weight, and excellent noise performance—along with stable and reliable operational capabilities, making our Electric Pump highly popular among numerous domestic and international automotive manufacturers and customers.

Product Features

1. The product features a high degree of integration, achieving a highly compact assembly of the motor, controller, emergency valve block, and oil pump;
2. The product is characterized by its compact size, light weight, and ease of installation;
3. The product features a small displacement and low energy consumption; it can automatically adjust its output flow and power, and immediately take over operations in the event of a main pump failure;
4. The product offers strong versatility, requiring no redesign of other vehicle components;
5. The system ensures high operational reliability, as well as excellent interchangeability and maintainability.
