600W 24V electronic coolant pump for EV BTMS

Short Description:

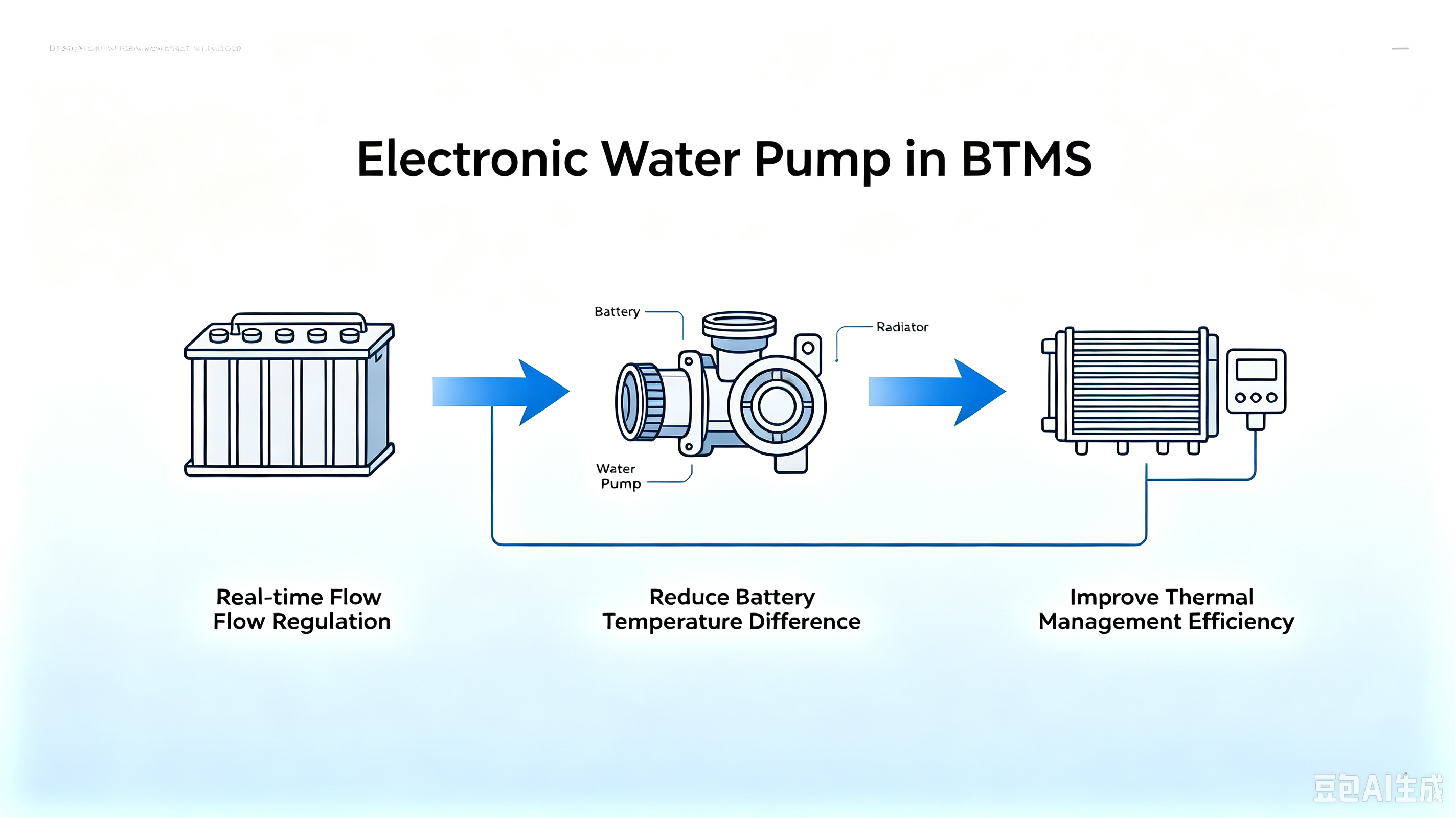

The electric coolant pump is a core actuating component of the liquid-cooled battery thermal management system in electric vehicles; it drives the circulation of coolant (an ethylene glycol-water solution) through the battery pack circuit to cool or preheat the battery cells, minimize temperature differentials, and ensure safety during fast charging.

Send email to us

Product Detail

Product Tags

Product Description

This electronic water pump is a variable-speed unit featuring an impeller driven by a brushless DC motor, which is controlled by an integrated controller.

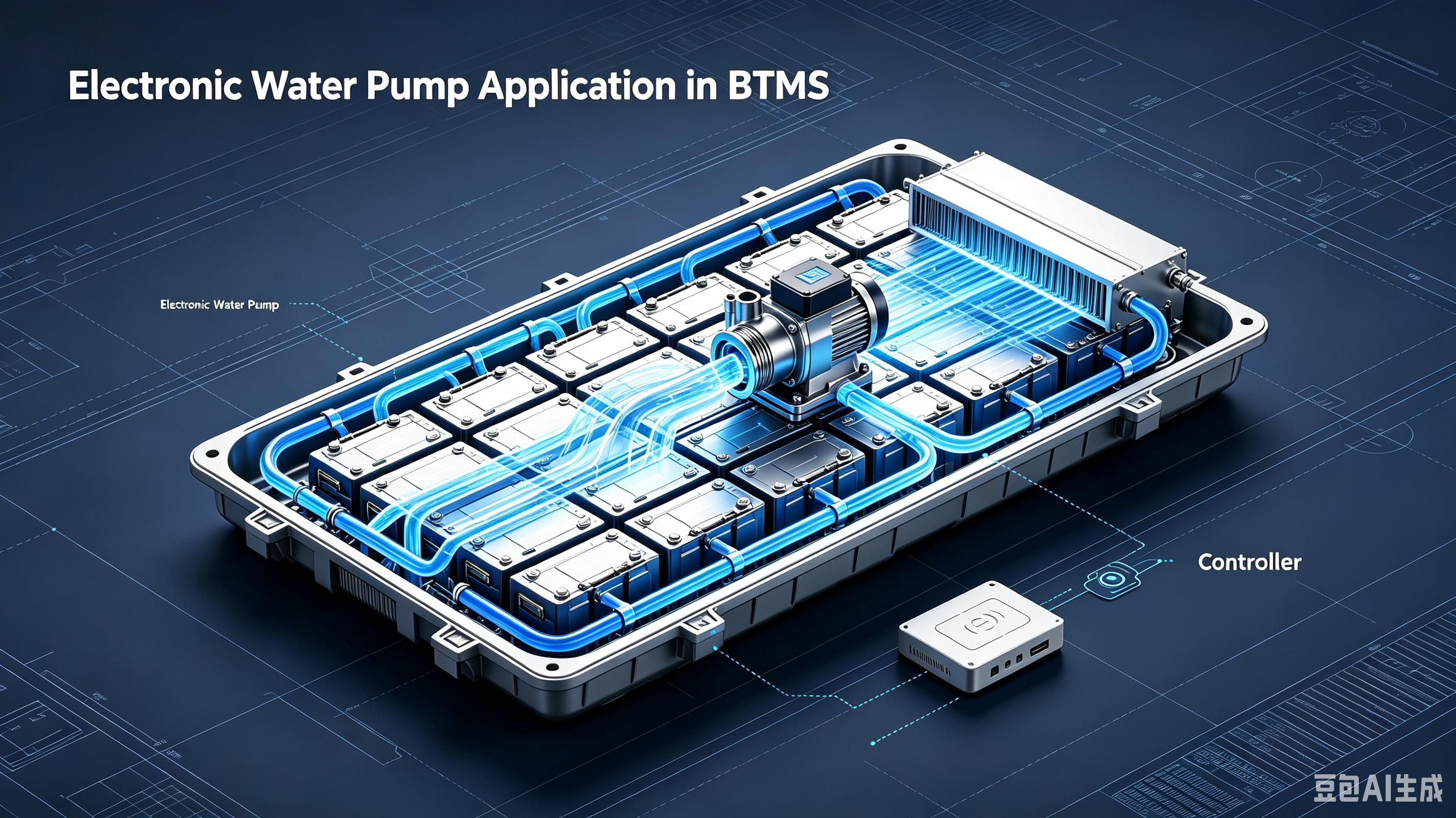

It is suitable for applications such as automotive engine primary and auxiliary cooling systems, battery pack cooling systems, and energy storage equipment. By circulating coolant to various heat dissipation channels, it enables thermal management systems to operate at peak efficiency and ensures stable performance.
The electronic circulation pump supports speed control via CAN bus, allowing for the adjustment of its operating status. In addition to its core functions, the pump is equipped with comprehensive protection features.

Product Parameter

1	product name	electronic water pump
2	product model	02.03.732.3405
3	Rated voltage	DC24V
4	Woking voltage range	DC18V～32V
5	Rated current	≤25.5A
6	power	600W
7	Rated flow	≥3500L/h@24m
8	Max head	≥27m

Performance Parameter

1	Lifetime	≥20000H
2	Waterproof level	IP98
3	Color	black
4	Environmental protection grade	Complies with RoHS environmental requirements.
5	Frame material	ADC12、PPS+GF30
6	noise	≤60db
7	Sealing performance	Test pressure: 350 kPa; test duration: 5 s; leakage: ≤80 Pa
8	Working Principle	Centrifugal pump
9	Application	Vehicle water circulation cooling system

Performance Curve

Structural Composition

This series of EV Circulation Pump features a canned pump design driven by a brushless motor, with the following main components:
1. A DC brushless motor, comprising a rotor assembly (including the impeller assembly) and a stator housing assembly (including the isolation sleeve and rear bearing housing assembly).
2. A controller (PCB assembly) for communicating with the main control unit and controlling the DC brushless motor.
3. A pump cover for connecting to the vehicle, engine, and cooling system.
4. A brushless motor rear cover, including a wiring assembly for connection to the vehicle.
