600W EV Circulation Pump For Auxiliary cooling system

Short Description:

The electric coolant pump is a core actuating component of the liquid-cooled battery thermal management system in electric vehicles; it drives the circulation of coolant (an ethylene glycol-water solution) through the battery pack circuit to cool or preheat the battery cells, minimize temperature differentials, and ensure safety during fast charging.

Send email to us

Product Detail

Product Tags

Product Description

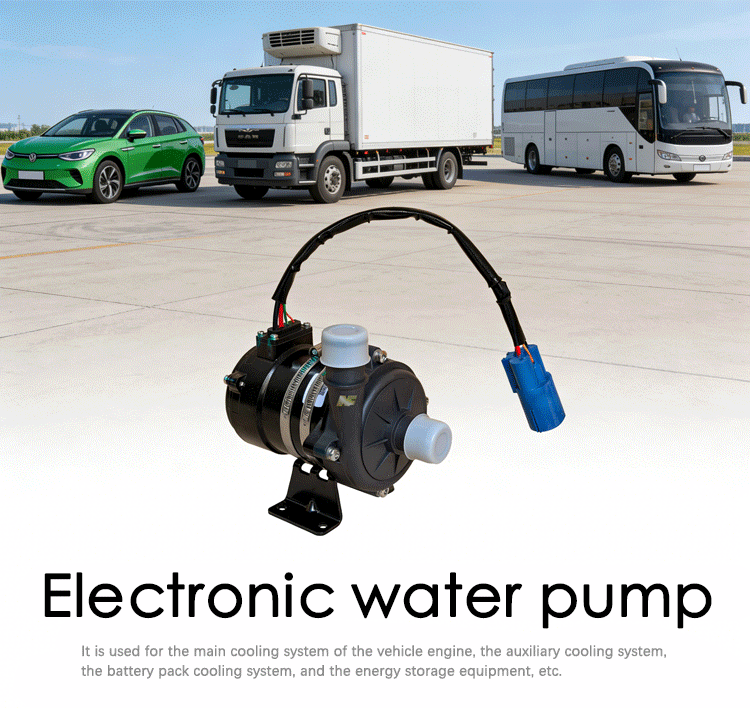

This EV electronic water pump uses a brushless DC motor to drive the impeller for adjustable-speed operation, and the brushless motor is driven by a built-in controller. It is applicable to main cooling systems, auxiliary cooling systems of automobile engines, thermal management systems of power battery packs, as well as energy storage equipment. The Ev Coolant Pump provides power for circulating coolant and pushes coolant to flow through each heat dissipation channel, so as to maximize the efficiency of each thermal management system and ensure continuous and stable operation of equipment. Speed regulation can be realized via CAN bus to adjust its operating conditions. Apart from the basic water circulation function, the EV Circulation Pump is equipped with multiple protection functions.

Product Parameter

1	product name	electronic water pump
2	product model	02.03.732.3405
3	Rated voltage	DC24V
4	Woking voltage range	DC18V～32V
5	Rated current	≤25.5A
6	power	600W
7	Rated flow	≥3500L/h@24m
8	Max head	≥27m

Performance Parameter

1	Lifetime	≥20000H
2	Waterproof level	IP98
3	Color	black
4	Environmental protection grade	Complies with RoHS environmental requirements.
5	Frame material	ADC12、PPS+GF30
6	noise	≤60db
7	Sealing performance	Test pressure: 350 kPa; test duration: 5 s; leakage: ≤80 Pa
8	Working Principle	Centrifugal pump
9	Application	Vehicle water circulation cooling system

Performance Curve

Structural Composition

This series of EV Circulation Pump features a canned pump design driven by a brushless motor, with the following main components:
1. A DC brushless motor, comprising a rotor assembly (including the impeller assembly) and a stator housing assembly (including the isolation sleeve and rear bearing housing assembly).
2. A controller (PCB assembly) for communicating with the main control unit and controlling the DC brushless motor.
3. A pump cover for connecting to the vehicle, engine, and cooling system.
4. A brushless motor rear cover, including a wiring assembly for connection to the vehicle.
