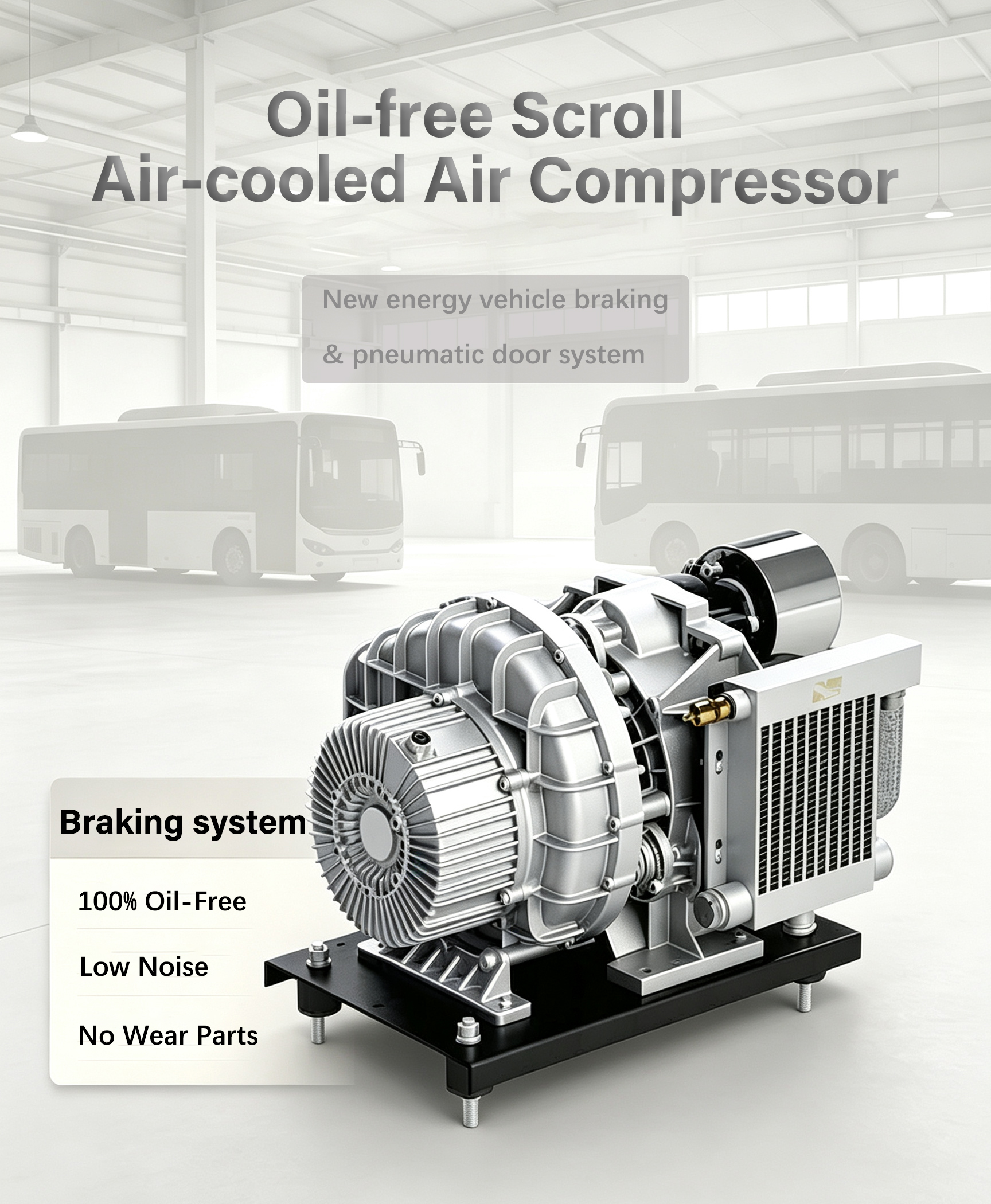

EV Oil Free Scroll Air Compressor

Short Description:

EV scroll‑type air compressor,

Product Detail

Product Tags

Description

The oil-free scroll air compressor consists of two intermeshing scroll members—one stationary and one orbiting—featuring profiles defined by dual-function equations. During the intake, compression, and discharge processes, the stationary scroll remains fixed to the frame, while the orbiting scroll is driven by an eccentric shaft and constrained by an anti-rotation mechanism, performing a planar orbiting motion with a small radius around the center of the stationary scroll's base circle. Air is drawn in through the filter at the periphery of the stationary scroll; as the eccentric shaft rotates, the gas is progressively compressed within the crescent-shaped compression chambers formed by the meshing scrolls and is subsequently discharged continuously through an axial port located at the center of the stationary scroll assembly.

Technical Parameter

Specification Model		G05ZY
Compression host	Rated power kW	3.7
	Rated speed r/min	3000
	Nominal displacement m ³/min	0.4
	Rated pressure MPa	0.8
	Ultimate pressure MPa	1.0
	Operating environment temperature ℃	-40~50
	Maximum exhaust temperature ℃	160
	Main shaft diameter mm	Ø25
	Spindle center height mm	148
	Exhaust outlet thread	Rp3/8
Drive motor	Drive Type	direct connection
	Motor Type	asynchronous motor
	Motor power kW	4.0
	Rated voltage V	AC380
	Rated current A	9.2
	Peak current A	14.1
	Peak torque N.m	19.1
	Motor frequency Hz	50
	Number of motor poles	2
	Number of motor phases	3
	Motor insulation grade	F
	Insulation resistance (Ω)	200
	Power Factor	0.99
	cooling method	air colling
	Work format	S1
	wiring method	Y

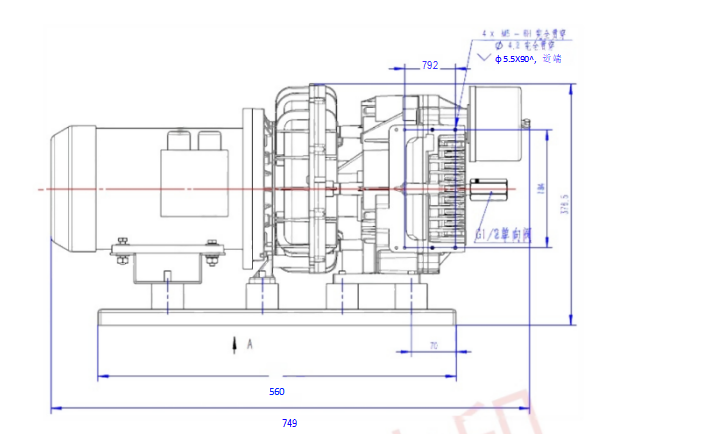

Dimensions (length * width * height) mm		*750397360*
Foot installation dimensions (length * width) mm
Weight k g		72

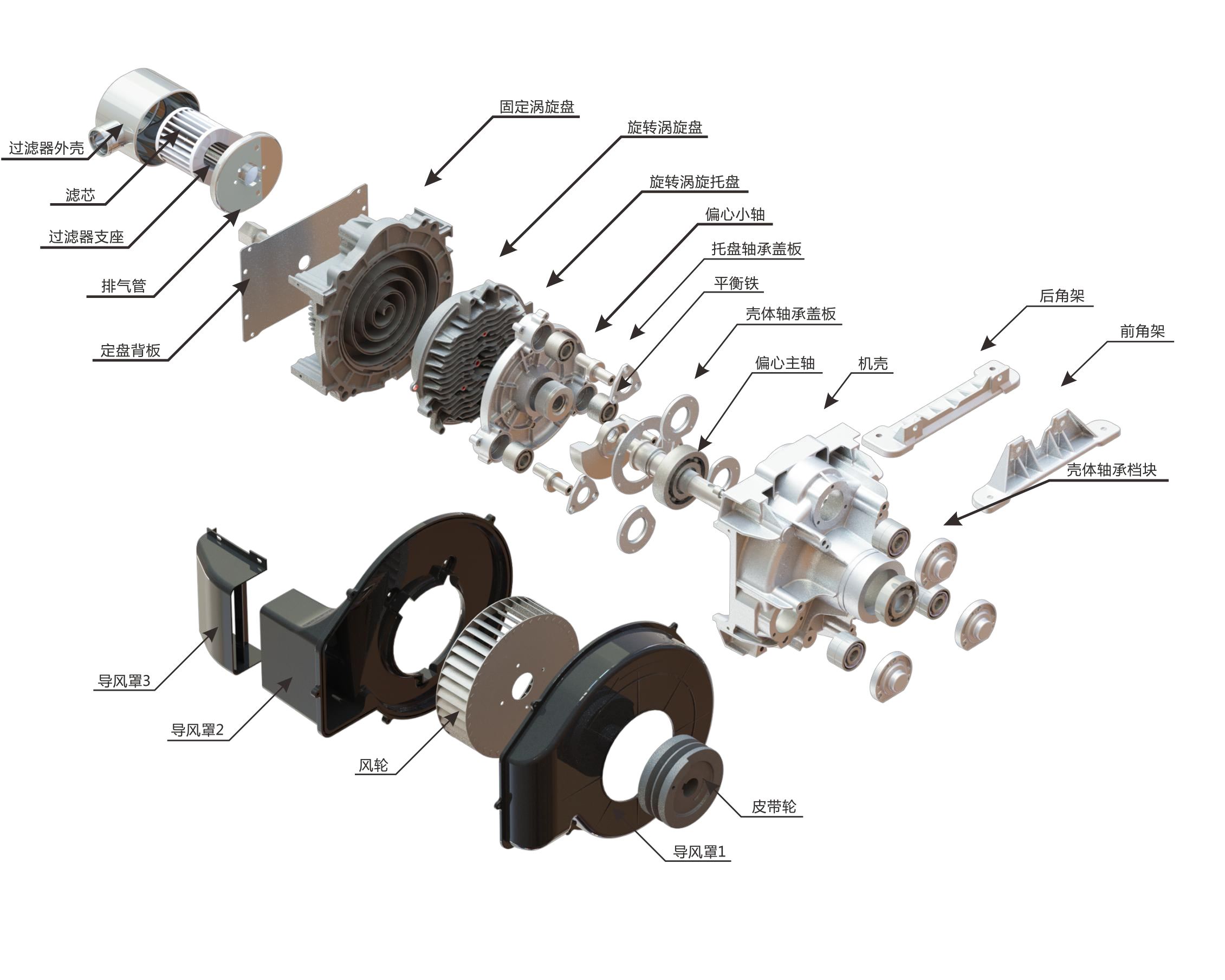

Structure Diagram

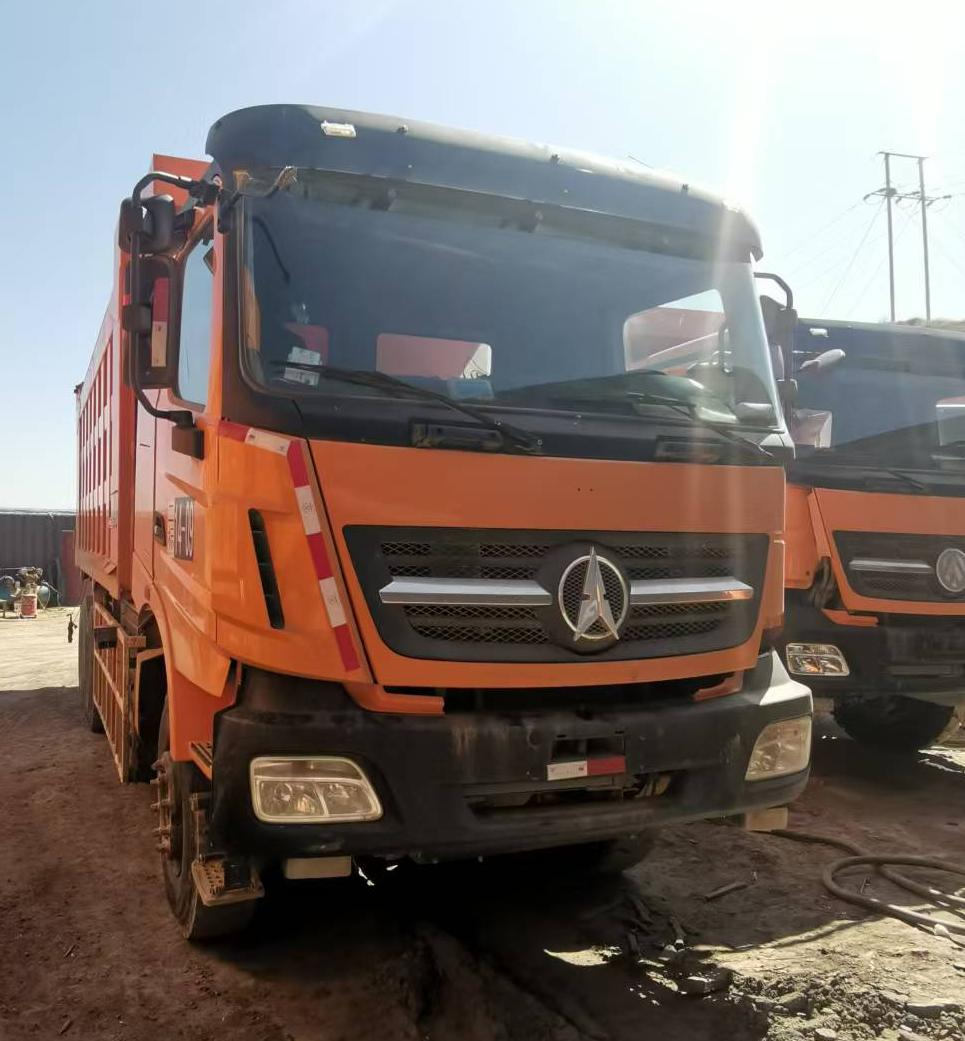

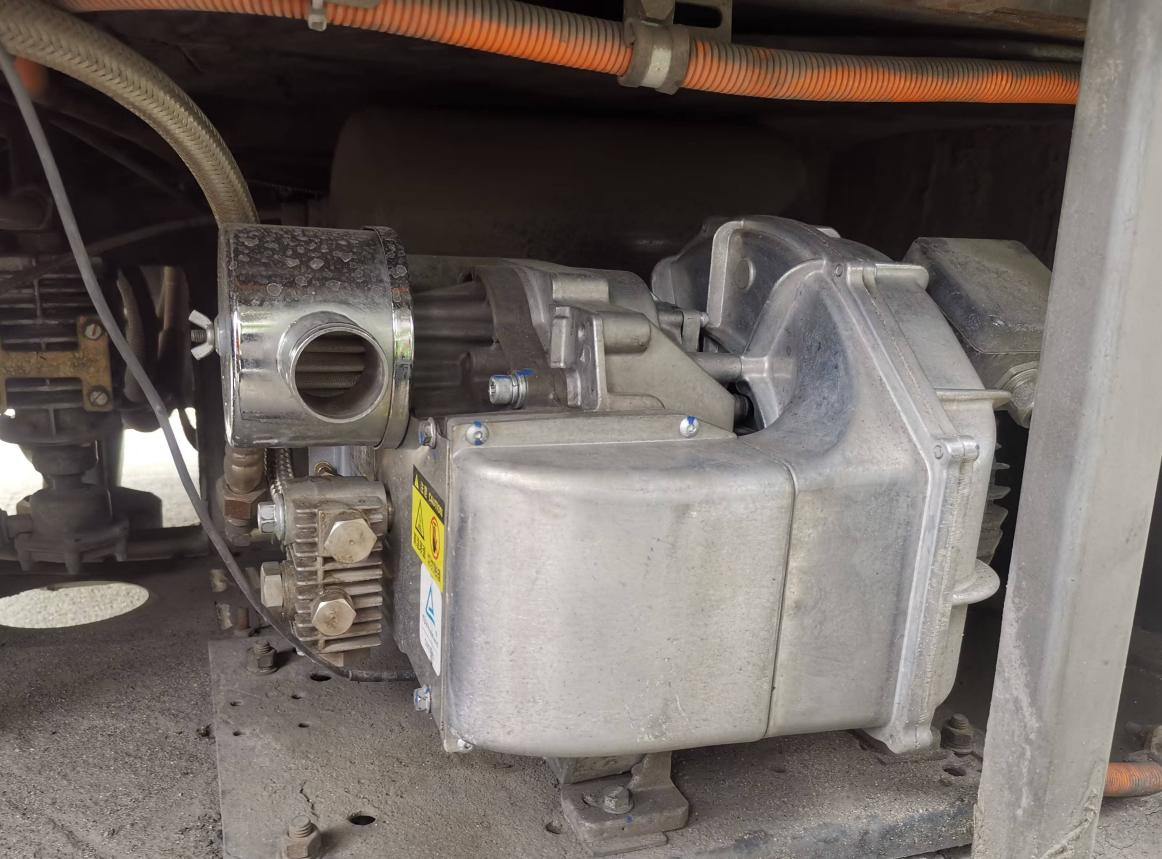

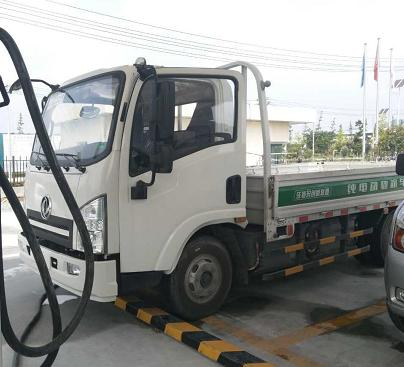

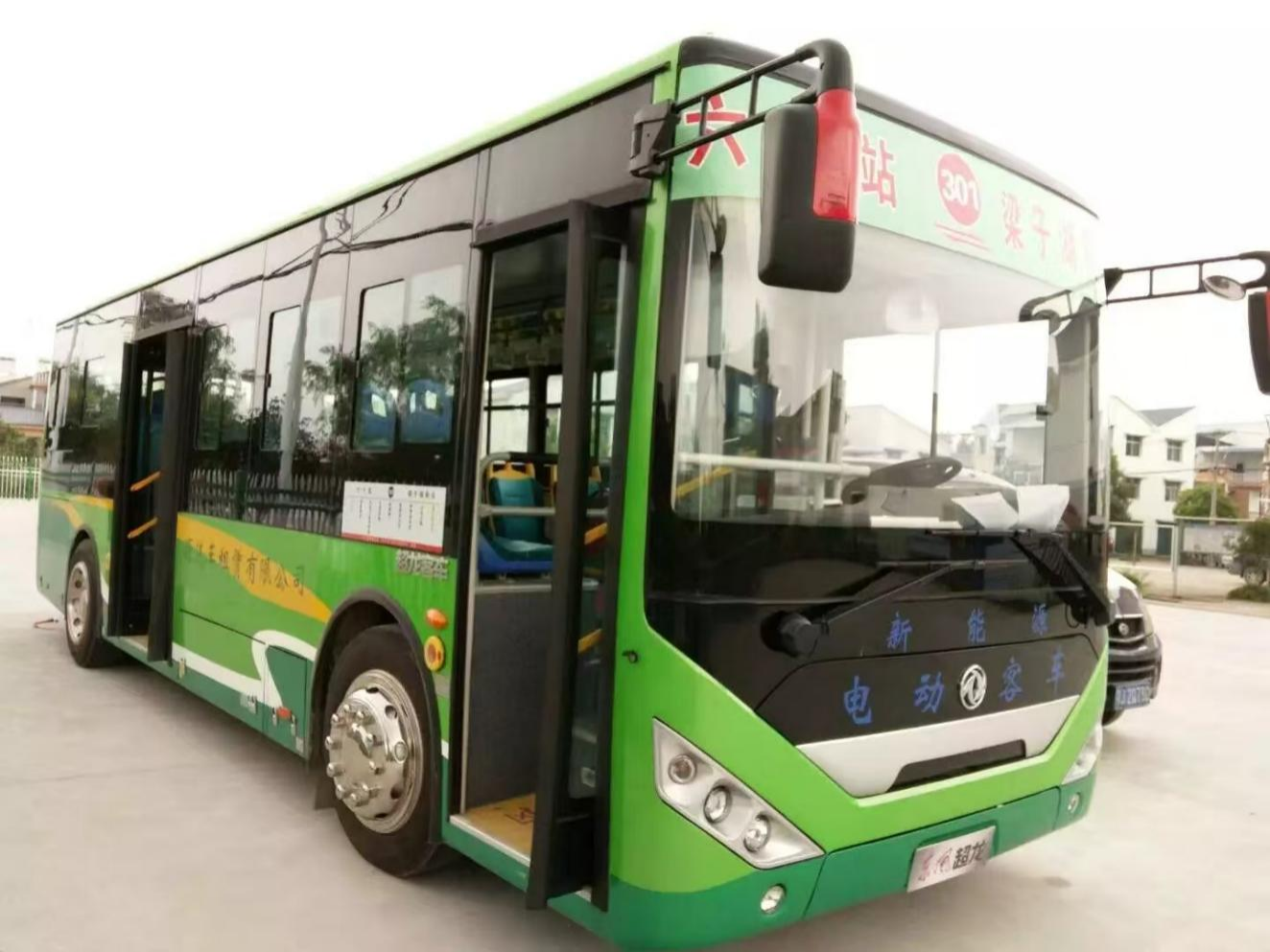

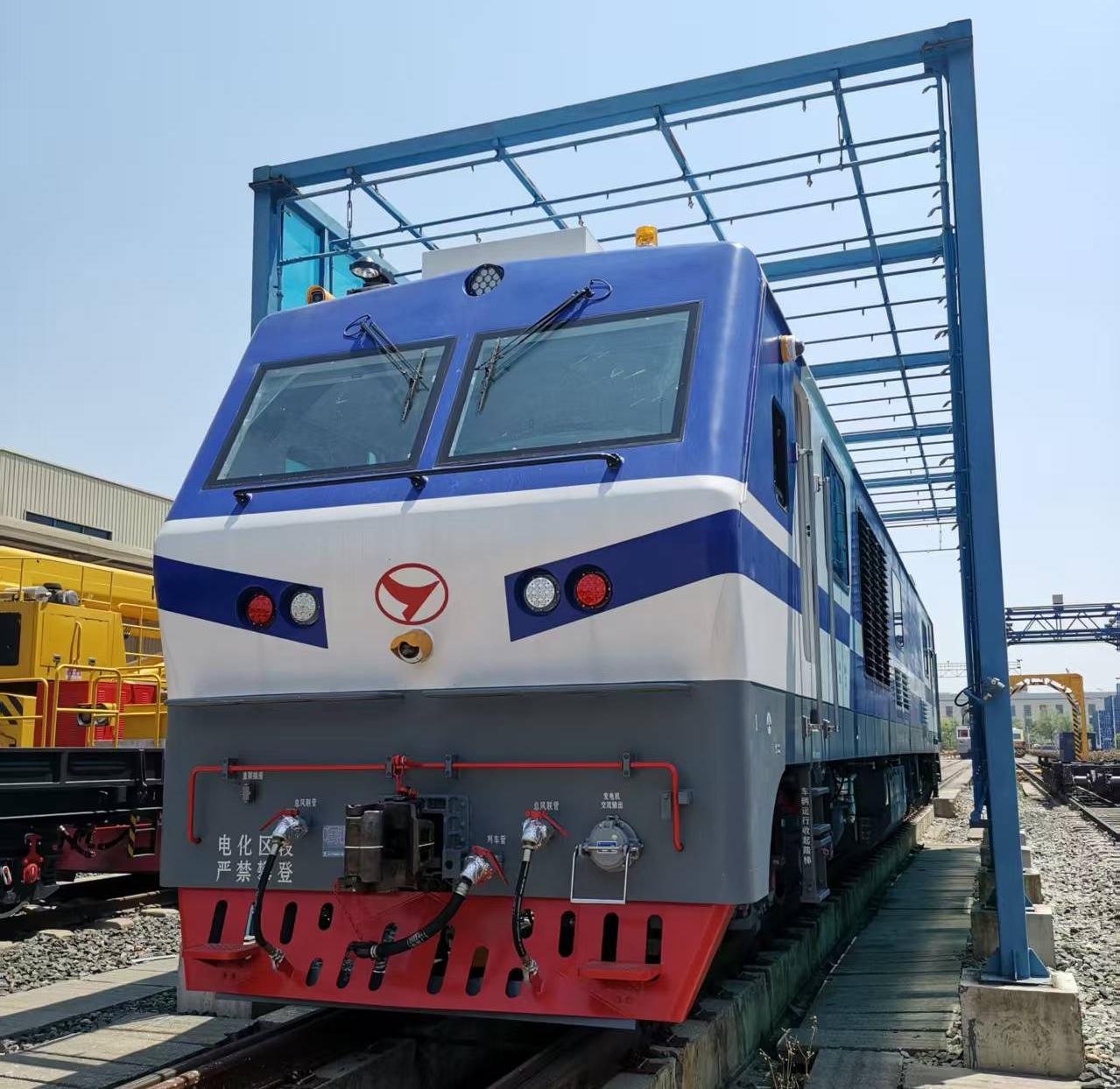

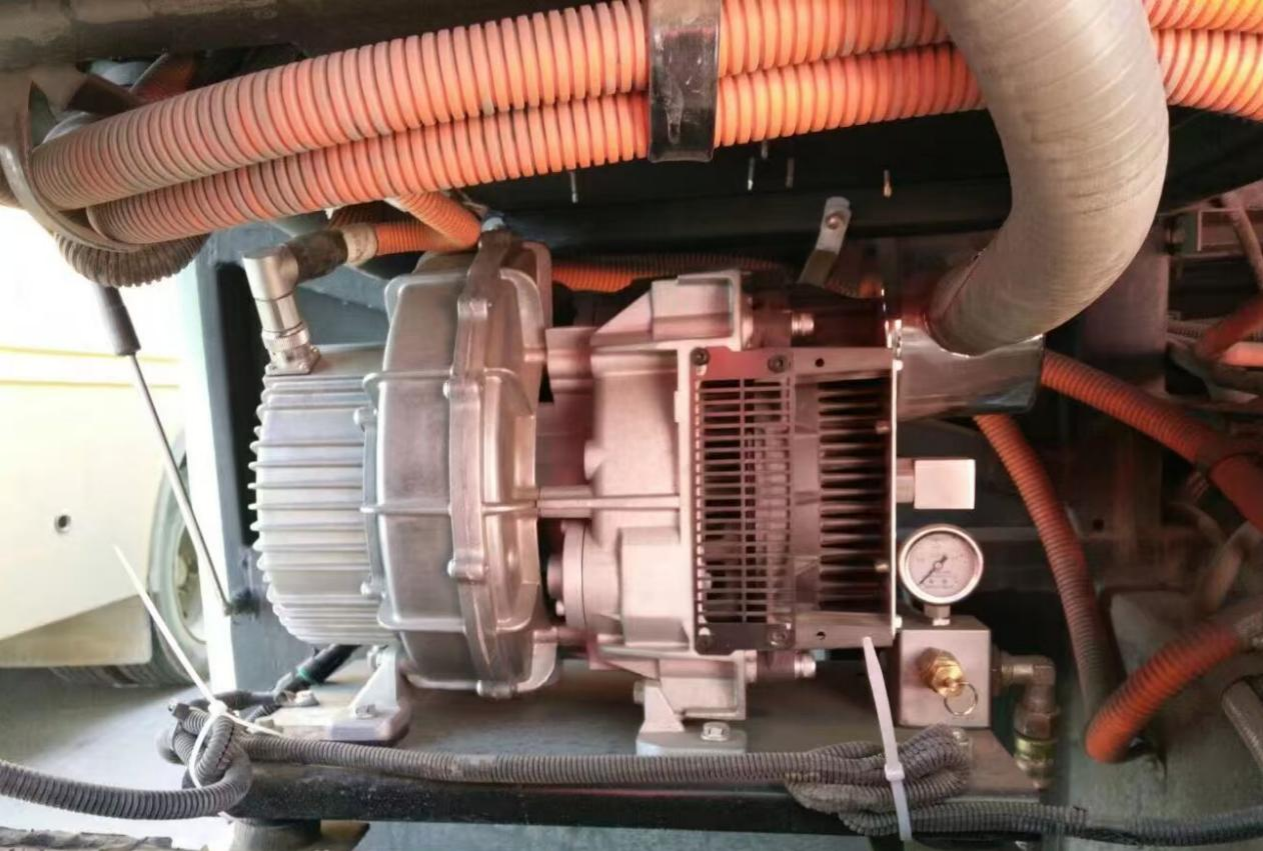

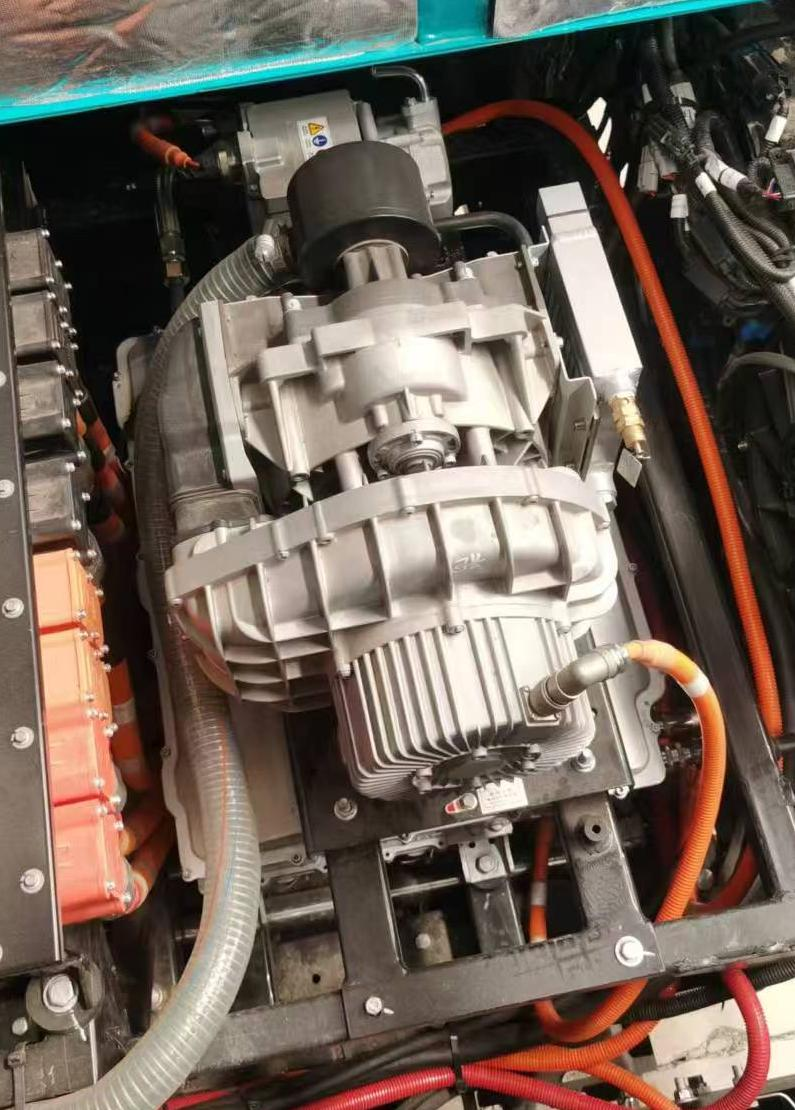

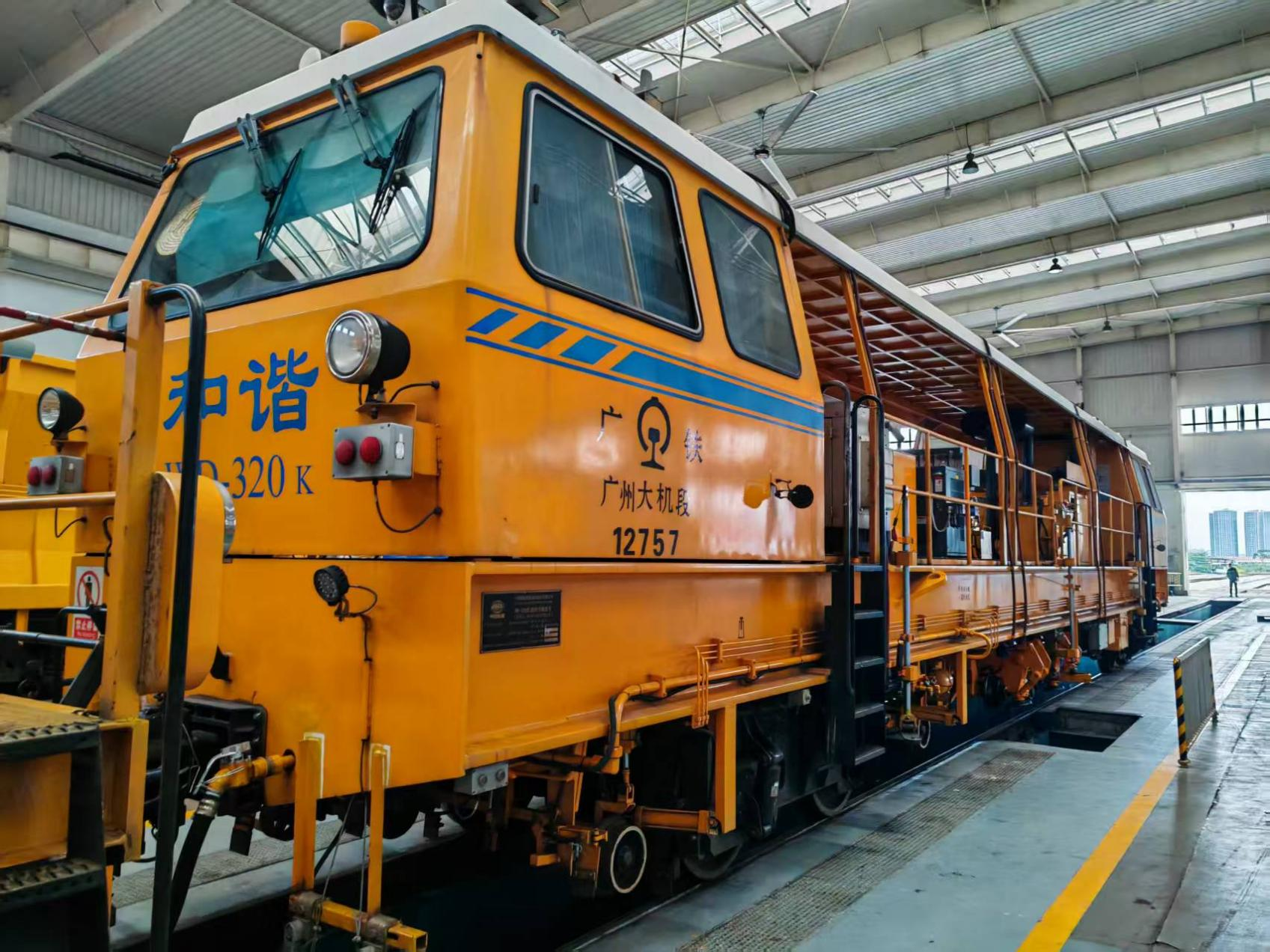

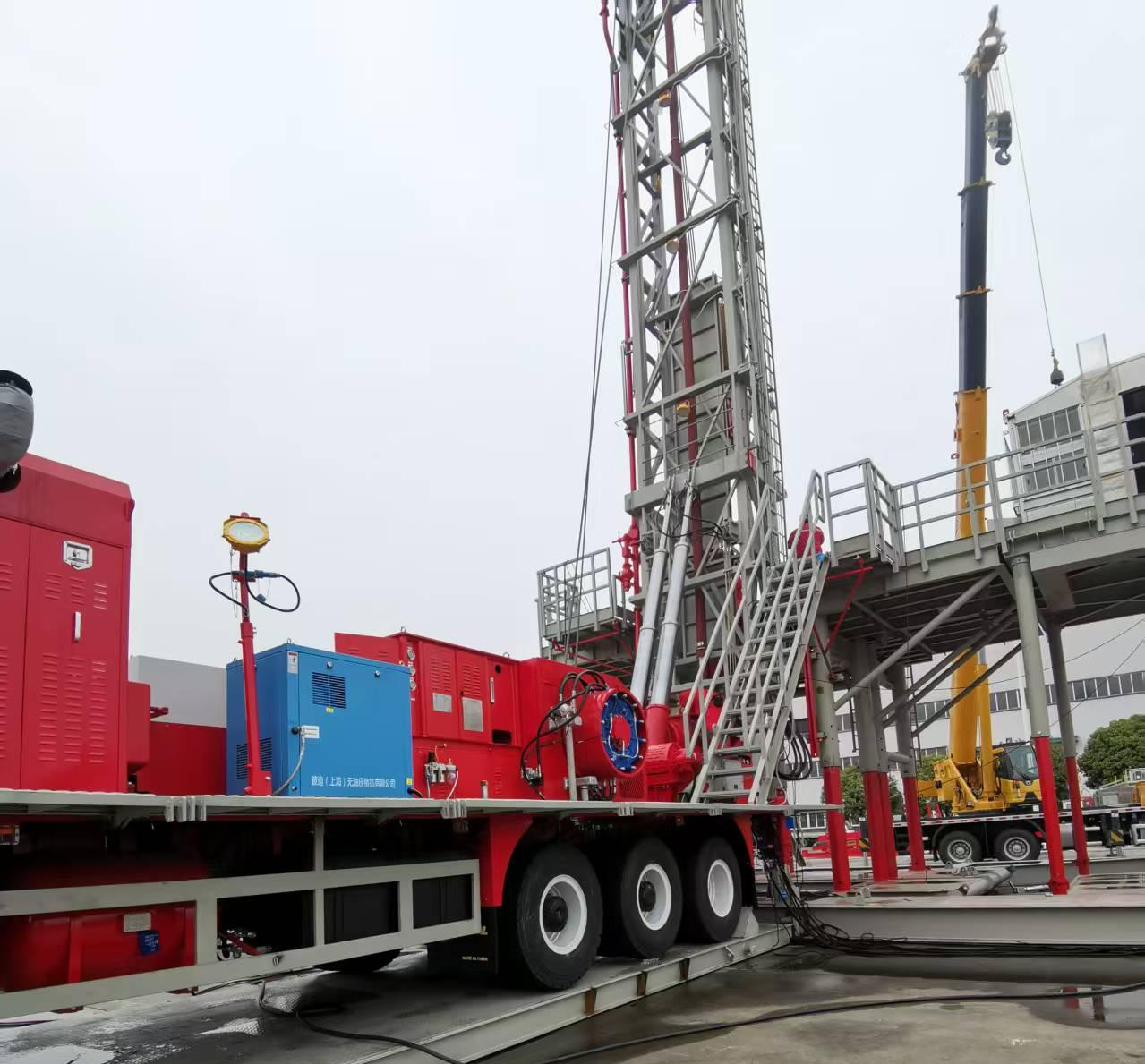

Application

Package And Delivery

Why Choose Us

Hebei Nanfeng Automobile Equipment (Group) Co., Ltd. was founded in 1993 and has grown into a corporate group with 6 factories and 1 international trading subsidiary. As a leading manufacturer of vehicle heating and cooling systems in China, we are also a designated supplier for Chinese military vehicles. Our main products include Battery Thermal Management Systems (BTMS), high-voltage coolant heaters, electronic water pumps, plate heat exchangers, parking heaters, and parking air conditioning systems.

Our factory's production units are equipped with high tech machineries,strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.

Our company attained the ISO/TS 16949:2002 quality management system certification in 2006, a key milestone in our commitment to excellence. Further affirming our international compliance, we have also secured the CE and E-mark certifications, distinctions held by only a select number of manufacturers worldwide. As the market leader in China with a 40% domestic market share, we supply products across the globe, with a strong presence in Asia, Europe, and the Americas.

Meeting the exacting standards and evolving demands of our customers is our core mission. This commitment drives our team of experts to continually innovate, design, and manufacture high-quality products that are ideally suited for both the Chinese market and our diverse international clientele.
