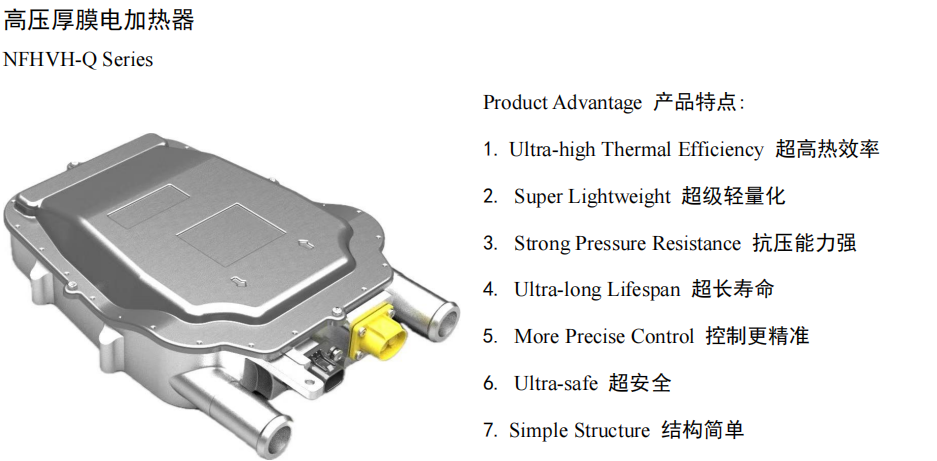

EV Thick Film High Voltage Heater Automotive Electric Heating Unit 7-15KW 400-800V CAN

1. Ultra-high Thermal Efficiency

2. Super Lightweight

3. Strong Pressure Resistance

4. Ultra-long Lifespan

5. More Precise Control

6. Ultra-safe

7. Simple Structure

Product Detail

Ultra-fast heating response

Heats up within several seconds with high thermal efficiency, quickly raising cabin temperature and realizing rapid defrosting & demisting for EVs.
Superior high voltage insulation & safety

Adopts professional thick film insulation structure, works reliably under vehicle high-voltage system. Excellent dielectric strength prevents electric leakage and breakdown, fully compliant with automotive safety standards.
High power density & compact design

Small size and light weight save vehicle installation space, easy to integrate into HVAC and battery thermal management systems. High power output is achieved in limited space.
Excellent environmental adaptability

Great vibration resistance, shock resistance and thermal shock resistance. Stable performance under bumpy road conditions and extreme cold/hot ambient temperature.
Energy saving & low consumption

High heat conversion rate reduces power loss, effectively saves EV battery power and extends driving range.
Long service life & high reliability

High temperature resistant and anti-aging materials. Stable operation for long-term continuous use, low failure rate and low maintenance cost.
Uniform heat distribution

No local overheating, provides comfortable and steady heating effect for the whole vehicle.

Model 型号	NFHVH-Q Series
Rated Power 额定功率（kw）	7-15
Working Voltage 工作电压（v）	400-800
Control Voltage 控制电压（v）	6-32
Medium Temperature Range 介质温度范围(℃)	~40-90
Ambient Temperature Range 环境温度范围(℃)	~40-125
Storage Temperature Range 储存温度范围(℃)	~40-125
Insulation Resistance 绝缘电阻(MΩ)	＞500@DC1000V
Pressure Rating 耐压等级(mA)	＜10@3500DC
Communication Methods通讯方式	CAN
Weight 重量(kg)	2.1
Dimension外形尺寸	277X178X59
Outlet Diameter 水管口径（mm）	φ20/φ25
