OEM 5KW 350V PTC Coolant Heater for Electric Vehicles

Short Description:

When the winter temperature is too low, the battery of electric vehicles will be broken life (capacity decay), weaken (performance decay), if this time charging will also lay the hidden danger of violent death (lithium precipitation caused by internal short circuit risk of thermal runaway). Therefore, when the temperature is too low, it is necessary to heat (or insulation). ThePTC coolant heater is mainly used for heating the passenger compartment, and defrosting and defogging the windows, or power battery thermal management battery preheating.


  • Model: SH05-1
  • Product Detail

    Product Tags

    Product Description

    hvch
    Medium temperature -40℃~90℃
    Medium type Water: ethylene glycol /50:50
    Power/kw 5kw@60℃,10L/min
    Brust pressure 5bar
    Insulation resistance MΩ ≥50 @ DC1000V
    Communication protocol CAN
    Connector IP rating(high and low voltage) IP67
    High voltage working voltage/V (DC) 250-450
    Low voltage operating voltage/V(DC) 9-32
    Low voltage quiescent current < 0.1mA

    Application

    This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC coolant heater is applicable to both vehicle driving mode and parking mode.
    In the heating process, electric energy is effectively converted into heat energy by PTC components. Therefore, this product has faster heating effect than internal combustion engine. At the same time, it can also be used for battery temperature regulation (heating to working temperature) and fuel cell starting load. The PTC heater adopts PTC technology to meet the safety requirements of passenger cars for high voltage. In addition, it can also meet the relevant environmental requirements of components in the engine compartment. The purpose of PTC electric heater in application is to replace the engine block as the main source of heat source. By supplying power to the PTC heating group, the PTC heating component is heated, and the medium in the circulating pipeline of the heating system is heated through heat exchange. The main performance features are as follows: With compact structure and high power density, it can flexibly adapt to the installation space of the whole vehicle. The use of plastic shell can realize the thermal isolation between the shell and the frame, so as to reduce the heat dissipation and improve the efficiency. Redundant sealing design can improve the reliability of the system.

    HVCH2

    Packing & Delivery

    5kw PTC heater
    electric parking heater

    This electric parking heater is vacuum packed, which can better protect the product from disturbance during transportation.

    Our Service

    We provide free technical service about electric parking heater and application issues.
    Free on-site touring and introduction of our factory.
    We provide process design and validation for free.
    We can guarantee on-time delivery of samples and goods.
    Close follow-up of all orders by special person and keep customers informed timely.

    Our Company

    Hebei Nanfeng Automobile Equipment (Group) Co.,Ltd is a group company with 6 factories, that specially produce parking heaters, parking air conditioners, electric vehicle heaters and heater parts for more than 30 years. We are the leading parking heater manufacturers in China.

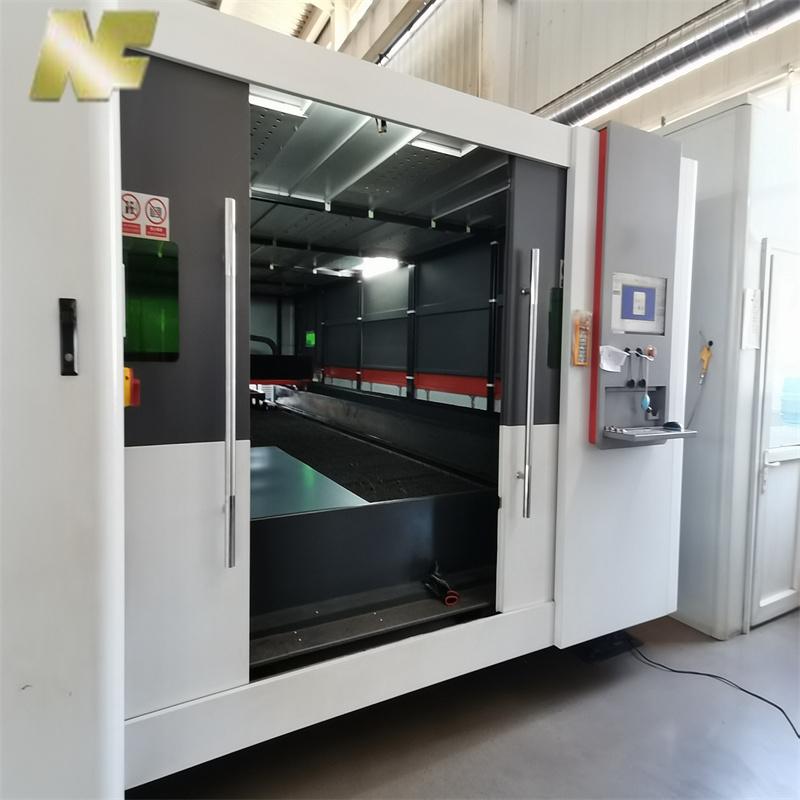

    Our factory's production units are equipped with high tech machineries, strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
    In 2006, our company has passed ISO/TS16949:2002 quality management system certification. We also bagged the CE certificate and Emark certificate making us amongst the only few companies in the world acquiring such high level certifications. Currently being the largest stakeholders in China, we hold a domestic market share of 40% and then we export them around the globe particularly in Asia, Europe and Americas.
    Meeting the standards and demands of our customers have always been our top priority. It always encourages our experts to continuously brain storm, innovate, design and manufacture new products, impeccably suitable for the Chinese market and our customers from every nook of the world.
