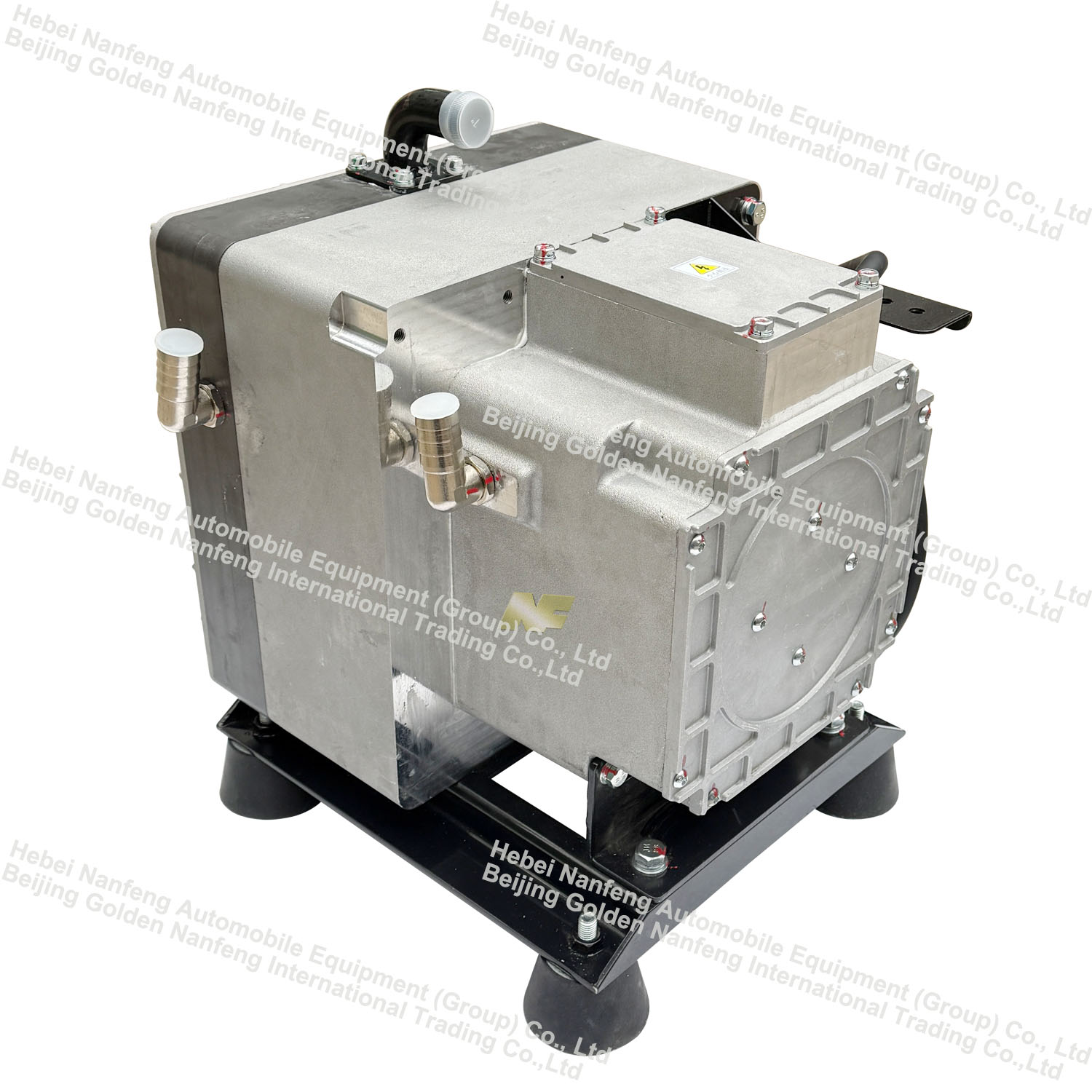

Oil-free Coolant Electric Commercial Vehicle Air Compressor
Product Description
First of all, thank you for choosing NF EV oil-free scroll air compressor.
This Electric Commercial Vehicle oil-free scroll air compressor is a product of our company, incorporating the latest international technology and meticulously designed by our professionals. The product undergoes rigorous inspection and testing before leaving the factory. However, to ensure the air compressor operates safely and reliably and has a long service life, please take the time to carefully read this instruction manual before use to ensure correct operation. If you have any questions, please contact our sales staff; we are confident we can provide you with satisfactory service. We hope our products can contribute to your life and work.
Product Parameter
| Item | Power
KW |
Pressure
MPa |
Motor type | Connection method | Exhaust port size |
| DS-CZ1.5A-8 | 1.5 | 0.85 | Permanent magnet synchronous motor | direct connection | Internal threadM22X1.5 |
| DS-CZ2.2A-10 | 2.2 | 1.0 | Permanent magnet synchronous motor | direct connection | |
| DS-CZ3.7B-12 | 4.5 | 0.85-1.2 | Permanent magnet synchronous motor | direct connection | |
| DS-CP3.7A-10 | 3.7 | 0.85-1.0 | AC asynchronous | belt | |
| DS-CZ3.7E-10 | 3.7 | 1.0 | AC asynchronous/DC brushless | direct connection | |
| DS-CZ3.7D-10 | 3.7 | 0.85-1.0 | AC asynchronous/DC brushless | direct connection |
Product Features
1. Zero oil pollution, high compressed air purity.
Completely oil-free design, eliminating the need for lubricating oil in the compression process, preventing oil from mixing into the compressed air, and ensuring 100% oil-free output air.
2. High efficiency and energy saving, low operating costs.
Continuous meshing compression of the scroll compressor achieves a volumetric efficiency of over 95%, which is more energy-efficient than piston or screw compressors.
3. Low noise and low vibration.
Smoother circumferential operation of the scroll compressor eliminates mechanical shock; optimized dynamic balance eliminates the need for complex vibration damping devices.
4.Simple maintenance and long lifespan
Application
Vehicle-mounted oil-free scroll air compressors are mainly used in electric buses, electric logistics vehicles, electric school buses, air brakes, air suspension, pneumatic doors, and other vehicles.
