Automotive Electric Coolant Pump For The Battery Thermal Management System(BTMS)

Short Description:

The EV Electronic Water Pump serves as a core actuation component within the battery battery thermal management system (BTMS) powertrain architecture. It actively circulates an ethylene glycol–water coolant mixture through the battery pack cooling circuit to enable both active cooling and preconditioning of battery cells, thereby mitigating inter-cell and intra-pack temperature gradients and enhancing thermal safety—particularly during high-power DC fast charging operations.

Send email to us

Product Detail

Product Tags

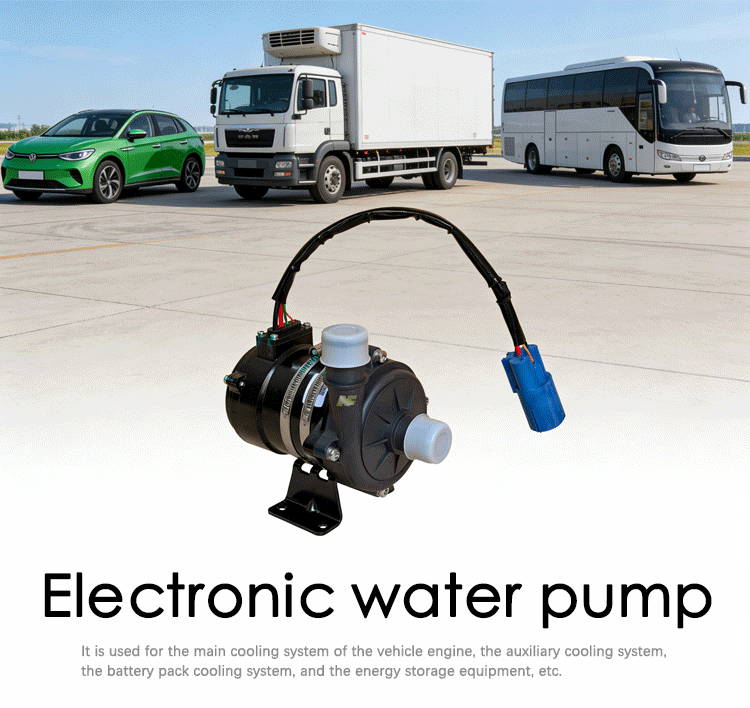

Electric Water Pump Description

The electric battery coolant pump is a core component of the battery thermal management systems (BTMS) used in new energy vehicles, electric heavy-duty trucks, and energy storage systems.

Driven by an independent brushless motor, the pump circulates coolant through the battery cooling circuit to dissipate heat from or preheat the power battery. Unlike engine-driven mechanical pumps, this electric automotive water pumps supports variable-speed control via ECU commands; it operates independently of the vehicle's engine status, allowing for precise regulation of coolant flow to ensure battery cells operate within their optimal temperature range.

Characterized by a compact design, low noise, high efficiency, and long service life, the pump helps stabilize battery performance, extend cycle life, and enhance system safety under extreme ambient temperatures.

Electric Water Pump Technical Parameter

OE NO.	NF-HS-070xxx	NF-HS-070xxx
Power range	200-380W	400-600W
Operating voltage range	18-32VDC	18-32VDC
Rated voltage	24V	24V
Rated parameters	40L/min@13m46.7L/min@16m50L/min@20m	50L/min@22m50L/min@24m58.3L/min@24m
Communication mode	CAN/PWM	CAN/PWM
Operating temperature range	-40°C~100°C	-40°C~100°C
Storage temperature range	-40°C~100°C	-40°C~100°C
Medium temperature	-40°C~90°C	-40°C~90°C
Dimensions	158.2mmx117mmx156.5mm	168mmx117mmx156.5mm
Interface size	25mm/38mm	25mm/38mm

Key Features

1. Brushless motor design featuring high energy efficiency and low power consumption
2. Closed-loop speed control that adjusts flow rate in real-time based on battery temperature signals from the BMS
3. Integrated design of motor, controller, and pump body; compact structure facilitates vehicle-level packaging
4. Excellent sealing performance effectively prevents coolant leakage; wide operating temperature range
5. Low vibration and noise levels; meets NVH (Noise, Vibration, and Harshness) requirements for passenger and commercial vehicles
6. Includes protection against overcurrent, overvoltage, undervoltage, and dry running
